ETH PHY

Производители

Page↓ ManufacturerCountryDescriptionlinkstatusTags
analog_devicesAnalog DevicesUSAAnalog Deviceshttps://www.analog.comblockedlogic, mcu, eth-phy
atherosAtherosUSAAtheros→Qualcomm Atheroshttps://www.qca.qualcomm.comblockedeth-phy
broadcomBroadcomUSA?Broadcomhttps://www.broadcom.com/eth-phy, eth-cntrl, eth-gearbox
dapuDapuChinaDapuhttps://www.dptel.com/eth-phy, freq-ocxo, freq-xco, freq-xtal, freq-tcxo
davicomDavicomTaiwanDavicom Semiconductorhttps://www.davicom.com.tweth-phy
intelIntelUSA?Intelhttps://www.intel.com/blockedeth-phy, eth-cntrl
marvellMarvellUSA?Marvellhttps://www.marvell.com/eth-phy, eth-cntrl
microchipMicrochipUSA?Microchiphttps://www.microchip.com/blockedeth-phy, eth-cntrl
microsemiMicrosemiUSAMicrosemi→Microchiphttps://www.microsemi.cometh-phy
motorcommMotorcommchinaMotorcommhttps://www.motor-comm.com/eth-phy, eth-cntrl
nxpNXPUSA?NXPhttp://www.nxp.comblockedlogic, mcu, eth-phy
realtekRealtekTaiwan?Realtekhttps://www.realtek.com/en/eth-phy, eth-cntrl, wifi-cntrl, audio-codec
texas_instrumentsTexas InstrumentsUSATexas Instrumentshttps://www.ti.comblockedeth-phy, logic

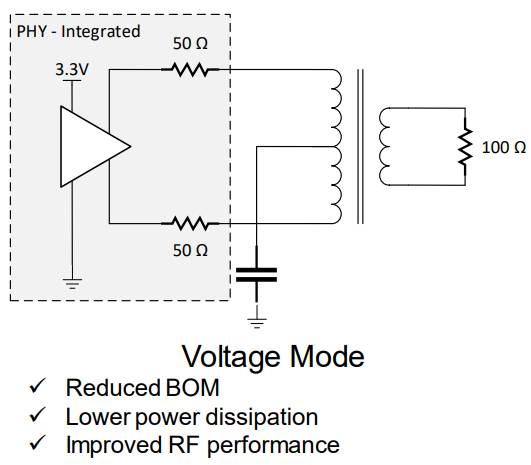

Voltage mode or Current mode Ethernet PHY

http://localhost/hash/6bf998c0c755a8c4e32568699476fbde/slyp788.pdf

current_mode_phy.jpg voltage_mode_phy.jpg
10/100Mbit, 2 Channels, 3.3V center tab 10/100Mbit, 2 Channels
3.3V*40mA= 132mA * 2 channels = 264mA 3.3V*6mA= 19.8mA * 2 channels = 39.6mA
1000Mbit, 4 Channels, 3.3V center tab 1000Mbit, 4 Channels
3.3V*40mA= 132mA * 4 channels = 528mA 3.3V*6mA= 19.8mA * 4 channels = 79.2mA

Микросхемы

Chip Manufacturer Interface Speed Operating t Octopart DKO el Datasheet I/O levels Comment
B50210E Broadcom RGMII 10/100/1000 -40; +85 Octopart DKO b50210e-ds06.pdf 1.8V HSTL, 2.5V 3.3V
BCM54210E Broadcom RGMII, SGMII 10/100/1000 -40; +85 Octopart DKO bcm54210e-ds07.pdf bcm54210e-an102-rds.pdf 1.8V HSTL, 2.5V 3.3V
BCM54811A2IMLG Broadcom GMII, RGMII, SGMII 10/100/1000 Octopart DKO bcm54811.pdf
BCM5461S Broadcom GMII, RGMII, SGMII 10/100/1000 Octopart DKO
BCM54616S Broadcom RGMII, SGMII 10/100/1000 Octopart DKO
BCM54210S Broadcom RGMII, SGMII 10/100/1000 -40; +85 Octopart DKO 2.5V 3.3V
KSZ9021RNI Microchip RGMII 10/100 -40;+85 Octopart DKO
KSZ9031RNXIA Microchip MII, RGMII, GMII 10/100/1000 -40;+85 Octopart DKO ksz9031rnxia.pdf 1.8V 2.5V 3.3V
KSZ9131RNXV Microchip GMII,MII,RGMII 10/100/1000 -40;+105 Octopart DKO ksz9131rnxi.pdf 1.8V 2.5V 3.3V
LAN8820i Microchip GMII,MII,RGMII 10/100/1000 -40;+85 Octopart DKO lan8820.pdf 2.5V
LAN8742AI Microchip RGMII 10/100 -40;+85 Octopart DKO lan8742ai.pdf 1.8V 2.5V 3.3V
LAN8720AI Microchip RMII 10/100 -40;+85 Octopart DKO lan8720ai.pdf 1.8V 2.5V 3.3V
LAN8700 Microchip MII RMII 10/100 0;+70 Octopart DKO lan8700c_i_.pdf 1.8V 2.5V 3.3V
LAN8700I Microchip MII RMII 10/100 -40;+85 Octopart DKO lan8700c_i_.pdf 1.8V 2.5V 3.3V
ADIN1200 Analog Devices MII, RMII, RGMII 10/100 -40;+105 Octopart DKO adin1200.pdf 1.8V 2.5V 3.3V
ADIN1300 Analog Devices MII, RMII, RGMII 10/100/1000 -40;+105 Octopart DKO adin1300.pdf 1.8V 2.5V 3.3V
AR8031-AL1B Atheros RGMII, SGMII 10/100/1000 -40;+85 Octopart DKO ar8031.pdf 1.5V 1.8V 2.5V 3.3V
AR8033-AL1B Atheros RGMII 10/100/1000 -40;+85 Octopart DKO
AR8035-AL1B Atheros RGMII 10/100/1000 -40;+85 Octopart DKO
VSC8501XML-03 Microsemi RGMII 10/100/1000 -40;+125 Octopart DKO vsc8501xml-03.pdf
VSC8531XMW-02 Microsemi RGMII 10/100/1000 -40;+125 Octopart DKO vsc8531-02.pdf 1.5V 1.8V 2.5V 3.3V
VSC8541XMV-05 Microsemi RGMII 10/100/1000 -40;+125 Octopart DKO vsc8541xmv-05.pdf 1.5V 1.8V 2.5V 3.3V
DP83620 TI RMII, MII 10/100 -40;+85 Octopart DKO dp83620.pdf 2.5V 3.3V
DP83822 TI RGMII, RMII, MII 10/100 -40;+125 Octopart DKO
DP83867IR TI RGMII, GMII, MII 10/100/1000 -40;+85 Octopart DKO
88E1510-A0-NNB2I Marvell RGMII, SGMII 10/100/1000 -40;+85 Octopart DKO 88e151x 2.5V 3.3V
88E1518 Marvell RGMII, SGMII 10/100/1000 0;+70 Octopart DKO 88e151x 1.8V
88E1512-A0-NNP2I Marvell RGMII, SGMII 10/100/1000 -40;+85 Octopart DKO 88e151x 1.8V 2.5V 3.3V
PEF7072 Rochester Electronics / Latniq / Intel RGMII, SGMII 10/100/1000 Octopart DKO У Вани остались не самые приятные впечатления от работы с этим модулем
TJA1100 NXP 1000 Octopart DKO
TJA1101 NXP 1000 Octopart DKO
RTL8211FI / RTL8211FDI Realtek RGMII 10/100/1000 -40;+85 Octopart DKO rtl8211fi.pdf
DM9119INP Davicom GMII/RGMII 10/100/1000 -40;+85 Octopart DKO dm9119inp.pdf 2.5V 3.3V
DM9119INX Davicom GMII/RGMII 10/100/1000 -40;+85 Octopart DKO pdf 2.5V 3.3V
DAP8211R Dapu RGMII 10/100/1000 0;+70 eth-phy eth-phy https://www.dptel.hk.cn/Products/ProductLevel3/1938
DAP8211RI Dapu RGMII 10/100/1000 -40;+85?

WiFi

AP6212 Octopart DKO ap6212.pdf

I219V I219LM

Chip Manufacturer Interface Speed Operating t Octopart DKO el Datasheet I/O levels Comment
WGI219V Intel PCIe like 10/100/1000 0…+85 Octopart DKO 3.3V
WGI219LM Intel PCIe like 10/100/1000 0…+85 Octopart DKO 3.3V
