Portwell PCOM-BA02GL

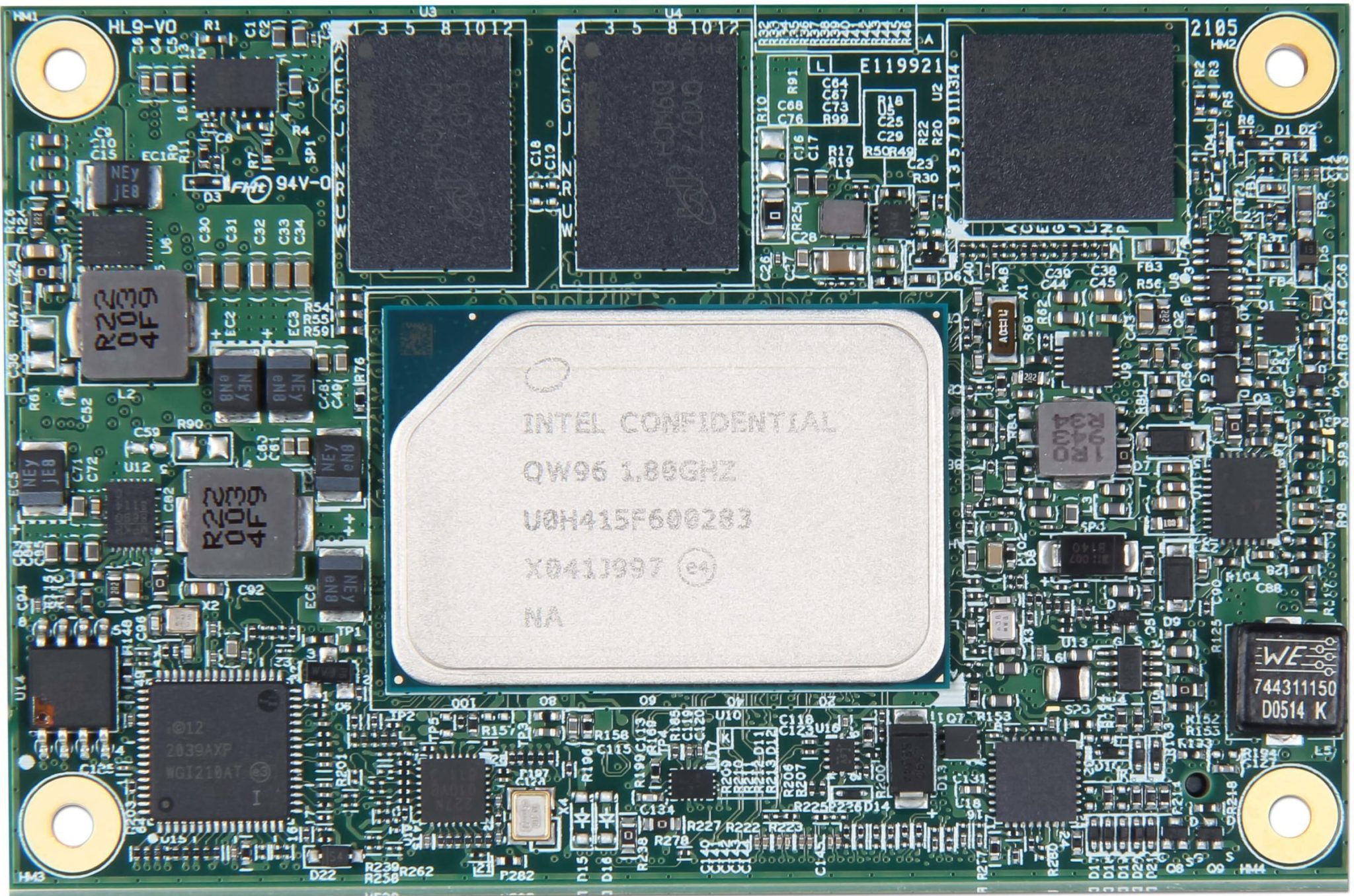

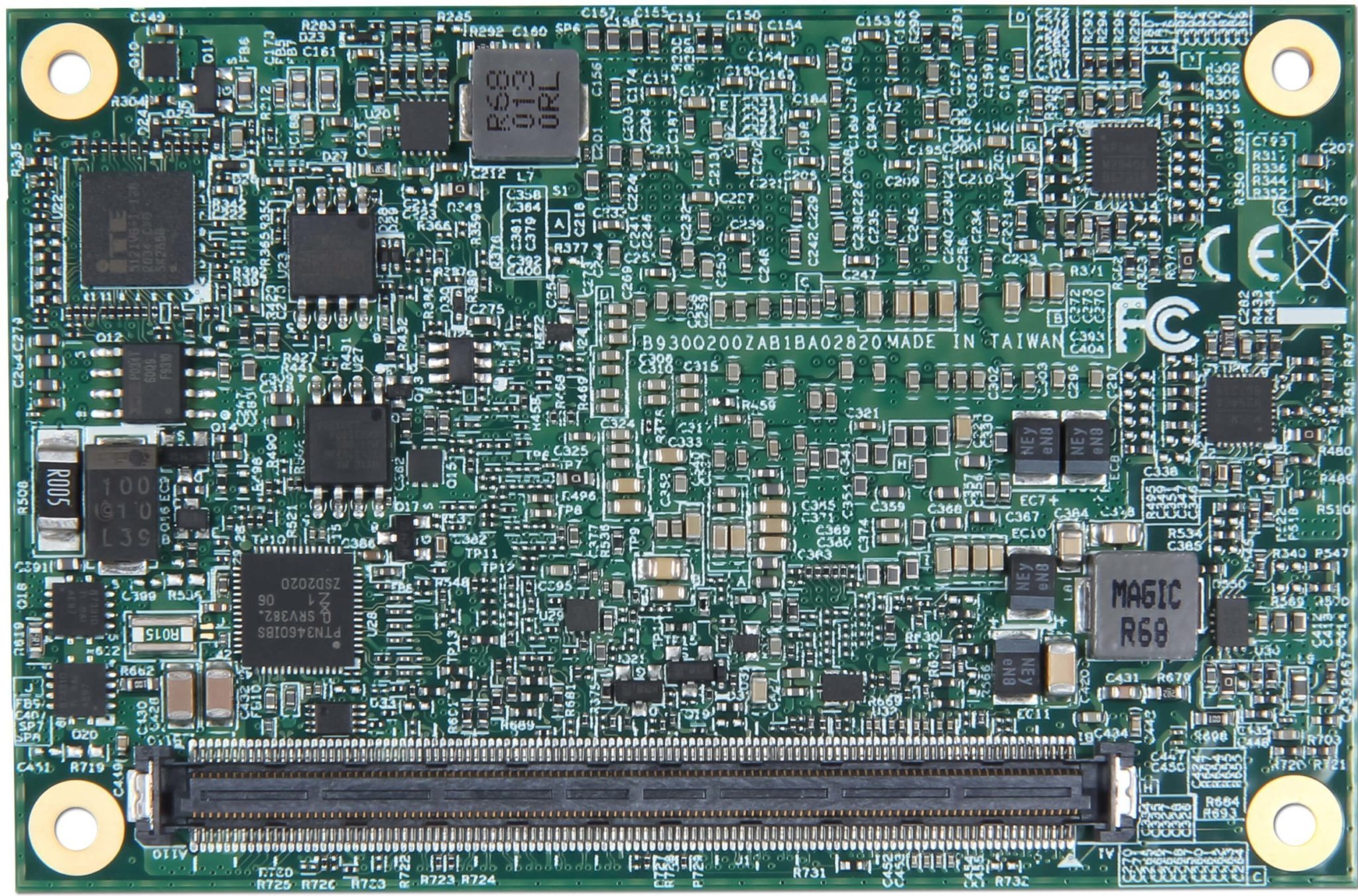

- pic:
- pn:
- PCOM-BA02GL
- formfactor:
- COM Express Type 10
- manufacturer:
- Portwell
- cpu:
- Intel Atom x6000E
- emmc:
- 16/32 GB
- ram:
- 4/8/16 GB LPDDR4
- temprange:
- 0...+60 °C, -40...+85 °C
- edp:
- 1 (or LVDS)
- dp:
- 1 DP/HDMI/VDI
- lvd:
- Single Channel via eDP<>LVDS IC (or eDP)
- ethernet:
- 1 (1GBit? 2.5 GBit?, SGMII? PCIe?) (GPY215? I210AT?)
- dsi:
- -
- csi:
- -
- usb2:
- 6(8)
- usb3:
- 2
- can:
- -?
- uart:
- 2 from EC
- spi:
- + (BIOS, TPM 2.0)
- pcie:
- x4 x 1, x2 x 2, x1 x 4 gen 3
- i2:
- HDA
- i2c:
- 1 (from EC\CPU)
- smbu:
- 1 (from EC\CPU)
- gpio:
- 4 GPI, 4 GPO from EC (or SDIO 3.0 from CPU option)
- bmc:
- EC (IT5121VG-I-128)
- tpm:
- TPM 2.0
- sata:
- 2 SATA III
- sdio:
- SDIO 3.0 (option)
- bio:
- AMI BIOS
- dimension:
- 84 x 55 mm
- lpc:
- + (eSPI<>LPC ECE1200????)
- espi:
- -
- datasheetwww:
- link
- datasheet:
- link

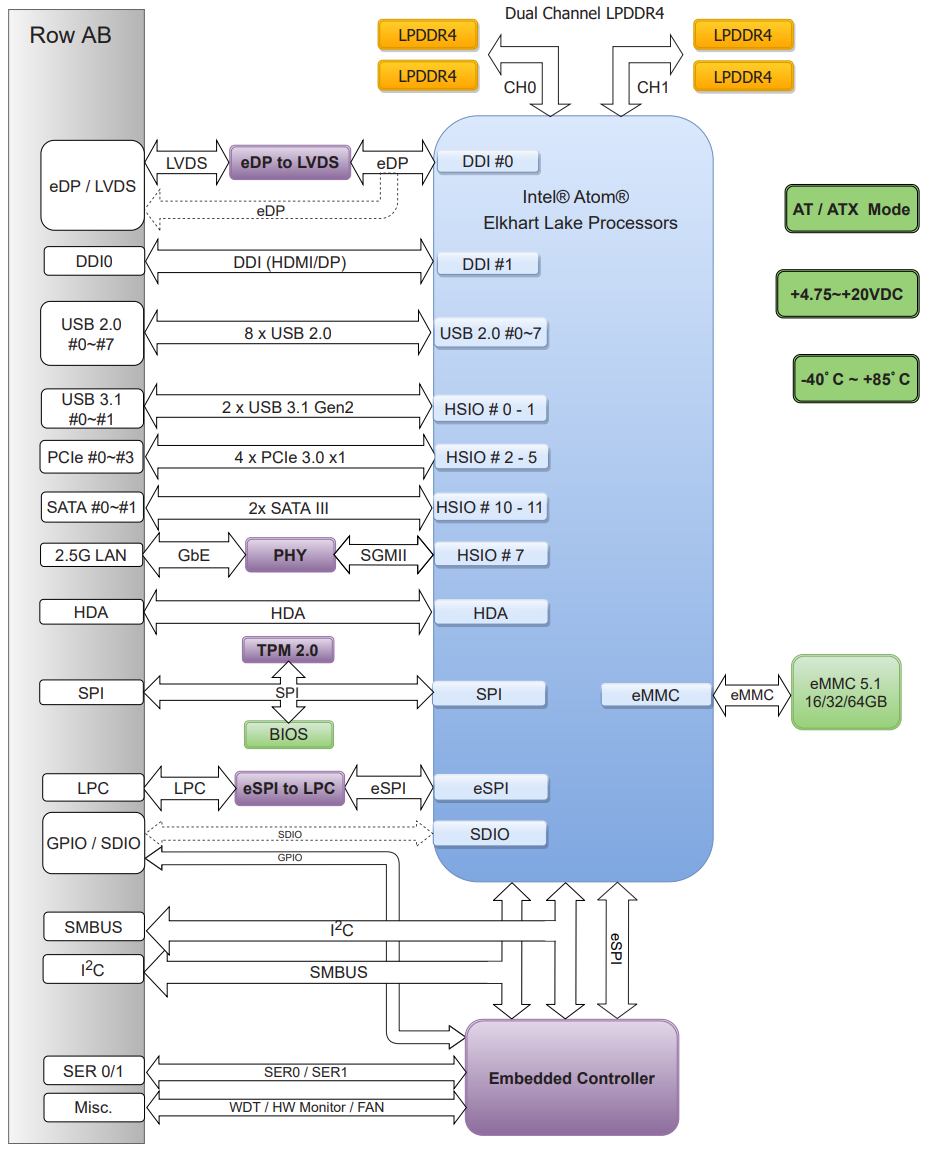

- struct:
- page:
- page

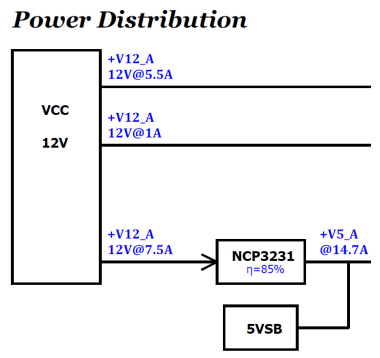

- power:
- 4.75V to 20V, AT/ATX Mode
 |  |
docs
USB
| USB 0 | HSIO 0 | from XHCI controller |
| USB 1 | HSIO 1 | from XHCI controller |
PCIe
| PCIE0 | HSIO 2 |
| PCIE1 | HSIO 3 |
| PCIE2 | HSIO 4 |
| PCIE3 | HSIO 5 |
SATA
| SATA0 | HSIO 10 |
| SATA1 | HSIO 11 |
LPC
LPC Bus is supported by a eSPI-to-LPC bridge IC
