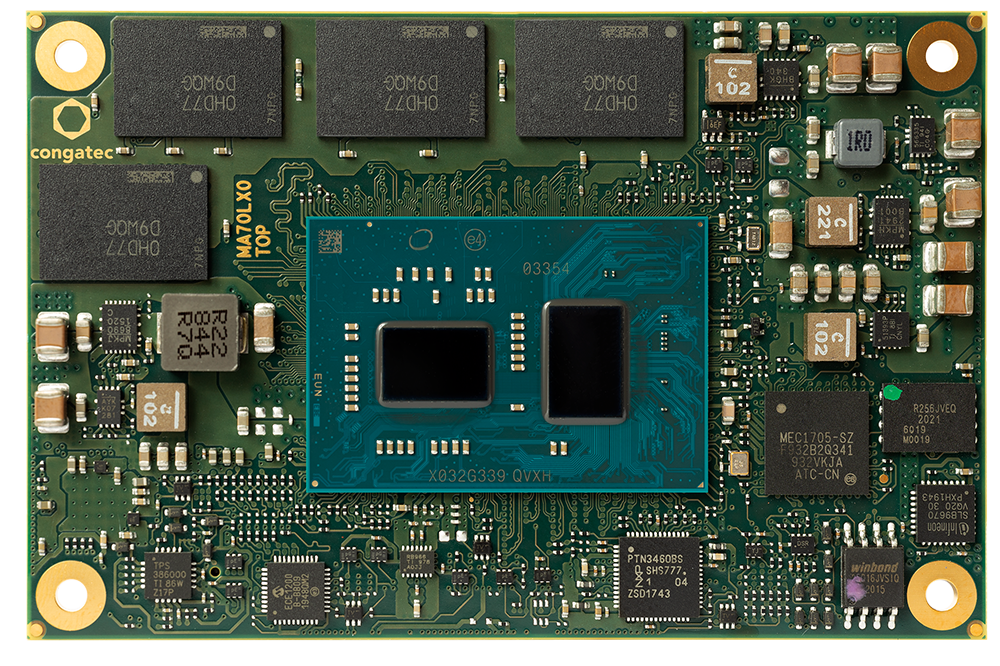

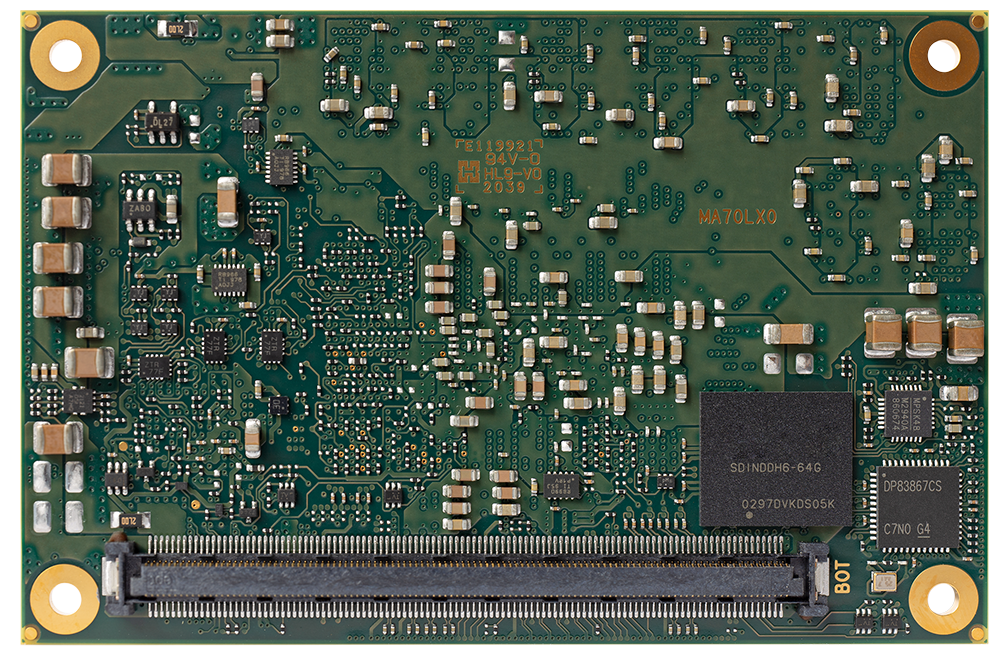

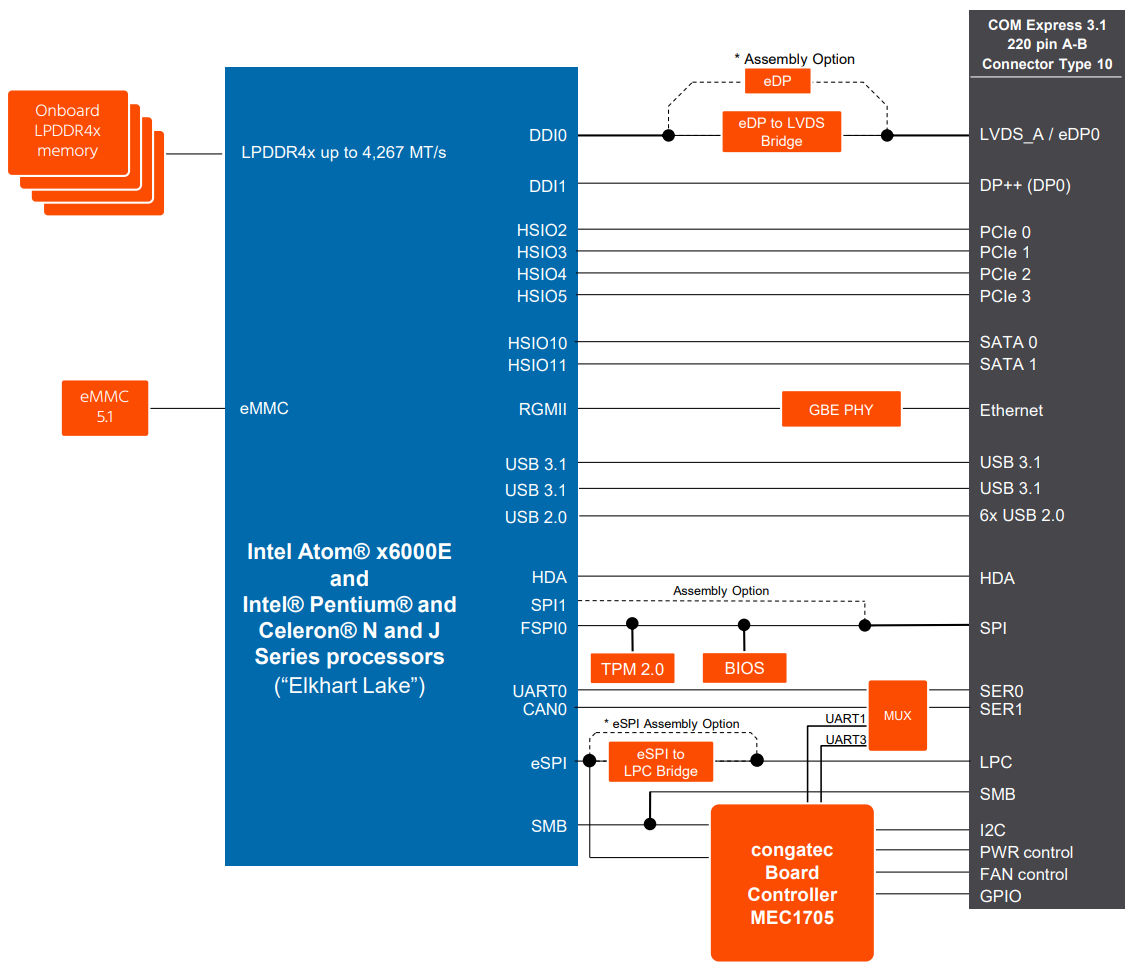

Congatec Conga-MA7
- pic:
- pn:
- Conga-MA7
- formfactor:
- COM Express Type 10
- manufacturer:
- Congatec
- cpu:
- Intel Atom x6000E
- emmc:
- 32/64 GB
- ram:
- 2/4/8/16 GB LPDDR4
- temprange:
- 0...+60 °C, -40...+85 °C
- edp:
- 1 (or LVDS)
- dp:
- 1 DP/HDMI/VDI
- lvd:
- Single Channel via eDP<>LVDS IC (or eDP)
- ethernet:
- 1 (1 GBit, SGMII) (TI DP83867CS)
- dsi:
- -
- csi:
- -
- usb2:
- 6(8)
- usb3:
- 2
- can:
- -?
- uart:
- 2 from EC/2 CAN friom EC/2 CAN from SoC
- spi:
- + (BIOS, TPM 2.0)
- pcie:
- x4 x 1, x2 x 2, x1 x 4 gen 3
- i2:
- HDA
- i2c:
- 1 (from EC\CPU)
- smbu:
- 1 (from EC\CPU)
- gpio:
- 4 GPI, 4 GPO from EC (or SDIO 3.0 from CPU option)
- bmc:
- MEC1705
- tpm:
- TPM 2.0
- sata:
- 2 SATA III
- sdio:
- SDIO 3.0 (option)
- bio:
- AMI UEFI 256Mbit
- dimension:
- 84 x 55 mm
- lpc:
- + (eSPI<>LPC ECE1200????)
- espi:
- -
- datasheetwww:
- link
- datasheet:
- link
- struct:
- page:
- page
- power:
- 4.75V (5V-5%) – 20V (19V+5%), AT/ATX Mode
 |  |
docs
LPC
LPC Bus is supported by a eSPI-to-LPC bridge IC
