Kontron COMe-mEL10

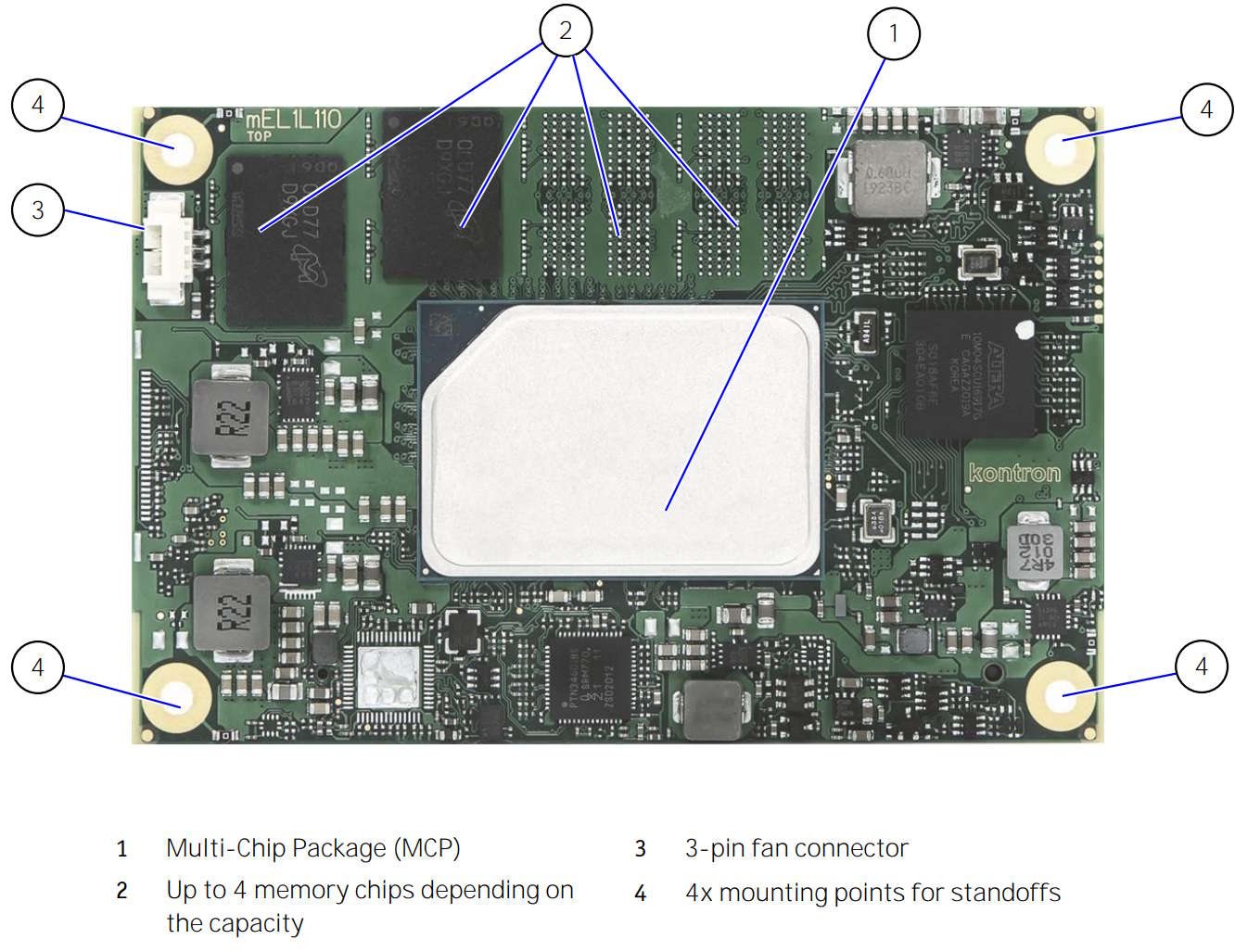

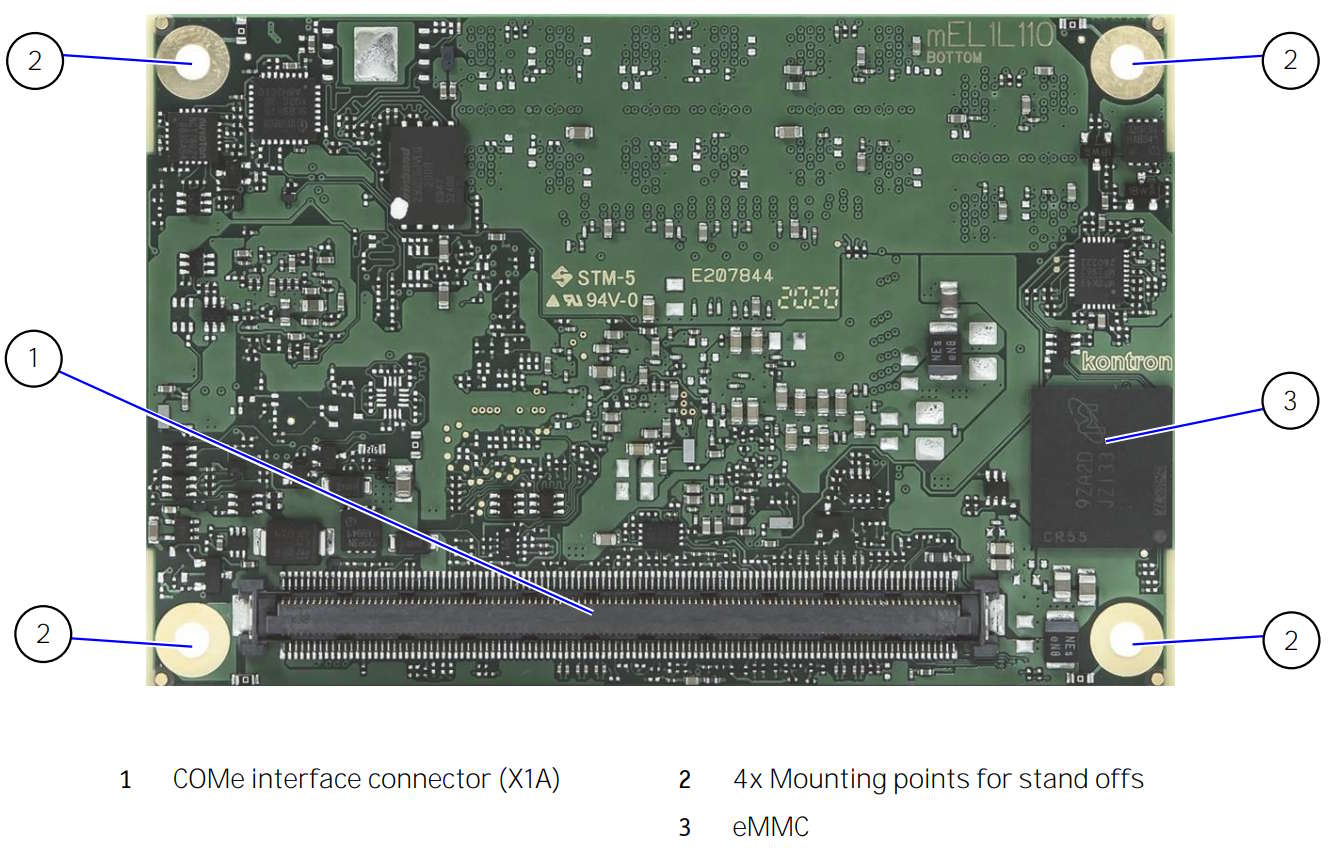

pic:
pn:: COMe-mEL10
formfactor:: COM Express Type 10
manufacturer:: Kontron
cpu:: Intel Atom x6000E
emmc:: 16/32 GB
ram:: 2/4/8 GB LPDDR4
temprange:: 0...+60 °C, -40...+85 °C
edp:: 1 (or LVDS)
dp:: 1 DP/HDMI/VDI
lvd:: Single Channel via eDP<>LVDS IC (or eDP)
ethernet:: 1 (2.5 GBit, SGMII) (GPY115/GPY215)
dsi:: -
csi:: -
usb2:: 6(8) (port7 client)
usb3:: 2
can:: 2 (in place of UART0/1)
uart:: 2 (UART or CAN) (from EC, from CPU option)
spi:: + (BIOS, TPM)
pcie:: x4 x 1, x2 x 2, x1 x 4 gen 3
i2:: HDA
i2c:: 1 (from EC)
smbu:: 1
gpio:: 4 GPI, 4 GPO from EC (or SDIO 3.0 from CPU option)
bmc:: EC (Altera MAX10 10M04SCU169I7G)
tpm:: TPM 2.0
sata:: 2 SATA III
sdio:: SDIO 3.0 (option)
bio:: AMI Aptio V uEFI
dimension:: 84 x 55 mm
lpc:: + (via EC eSPI<>LPC)
espi:: + (via 0R from CPU)
datasheetwww:: link
datasheet:: link

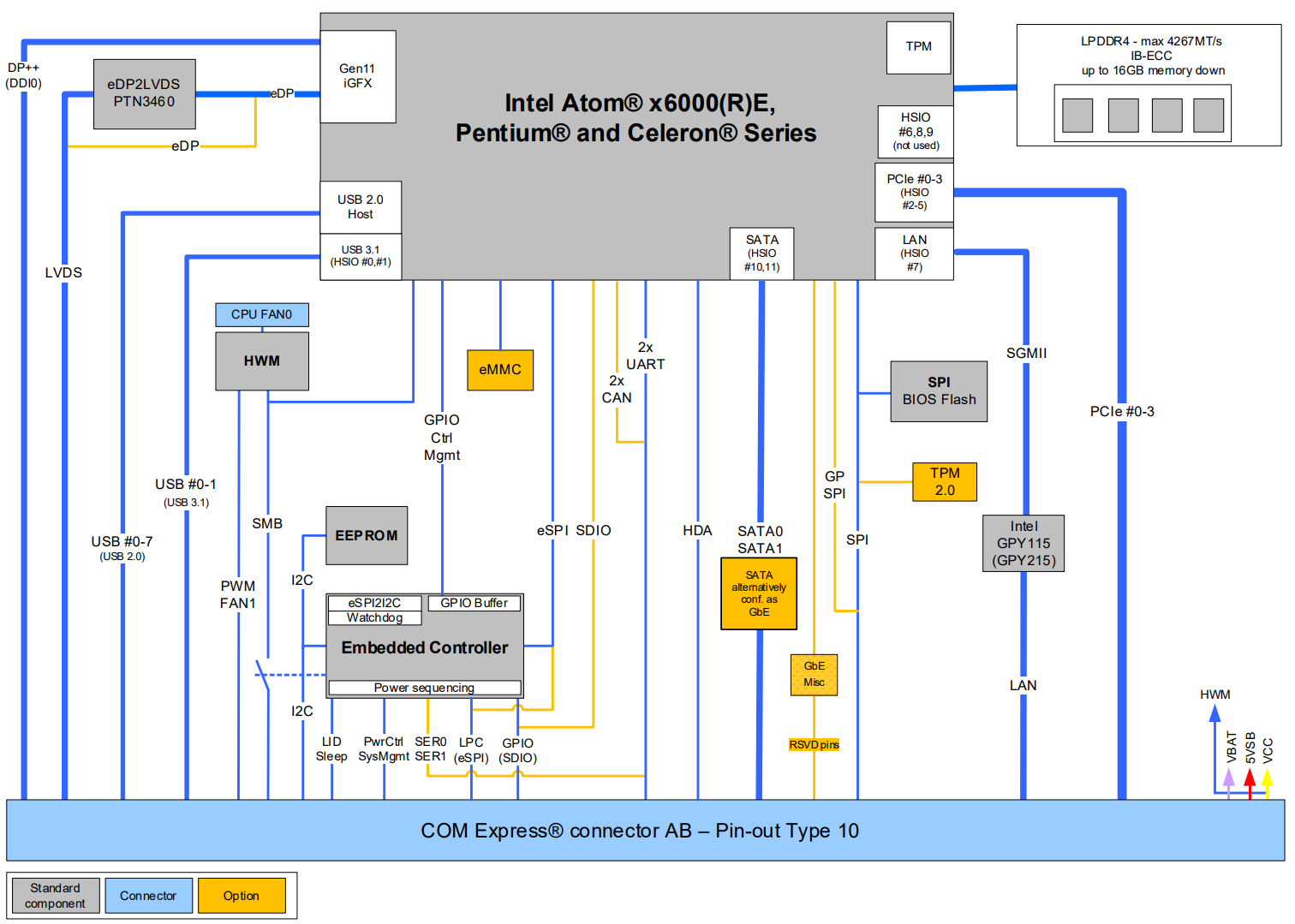

struct:
page:: page
power:: 4.75-20V/5Vsb

docs

COMe-mEL10	Kontron	SOM flyer	link
COMe-mEL10	Kontron	User's guide	link
PTN3460	NXP	eDP<>LVDS bridge	link
MAX10 10M04SCU169I7G	Altera	EC

Boot flash

Size	Manufacturer	Part Number	Device ID
32MB	Winbond	W25Q256JV	EFh / 40h / 19h
32MB	Macronix	MX25L25645GZ2I	C2h / 20h / 19h
32MB	Micron	MT25QL256ABA1EW9-0SIT	20h / BAh / 19h
32MB	Cypress	S25FL256LAGNFI010	01h / 60h / 19h

Hardware monitor

NCT7802Y (SMBus)

USB

USB 0	HSIO 0	from XHCI controller
USB 1	HSIO 1	from XHCI controller

PCIe

PCIE0	HSIO 2
PCIE1	HSIO 3
PCIE2	HSIO 4
PCIE3	HSIO 5

SATA

SATA0	HSIO 10
SATA1	HSIO 11

LPC

LPC_CLK = 25 MHz, eSPI_CK = 20 MHz
