Connectors

Manufacturers

https://www.amphenol-cs.com/
https://www.antenk.com/ China Antenk
https://www.kinghelm.net/ China Kinghelm
https://www.cvilux.com/ China CviLux Есть в Симметроне
https://edac.net/
https://www.elektrodetal.com/catalog/ Карачаев Прямоугольные соединители Каталог
http://www.klsele.com/ China KLS
https://www.molex.com/molex/home
http://en.ute.com.cn/ China UTE UTE Product List.pdf
http://www.dragoncity.com.hk/dcpoja.html China Dragon City
https://gct.co/
https://www.belfuse.com/
https://www.cui.com/ 		also stewart connector
http://www.starconn.com/ENG/Home.aspx Taiwan Starconn
https://www.singatron.com.tw/ Taiwan Singatron
https://www.keyelco.com/index.cfm USA Keystone
https://www.shareway-tech.com/
https://www.l-p.com/ru/ Link-PP

Interface

HDMI

Base P\N Manufacturer Description
CONN-HDMI-0.5MM-19P-RA-FLAG-TH 2007435-3 TE FLAG, RA
CONN-HDMI-0.5MM-19P-RA-FLAG-TH 2HE1542-120112F Singatron Flag, RA
CONN-HDMI-0.5MM-19P-RA-FLAG-TH aliexpress Flag, RA
CONN-HDMI-0.5MM-19P-RA-FLAG-TH aliexpress Flag, RA, 5шт. 150р.

USB

USB PINOUTS


USB 2.0 Upright (FLAG)

Normal
USBA-1U
UBAU-04SW01
3210SR
DS1095-01-W (белый, Connfly)
DS1095-01-BNR0 (чёрный, Connfly)
USB-A1SSW6 (белый, On Shore)
292336-1 (чёрный, TE)
1-1734775-1 (чёрный, TE)
L-KLS1-191-4P-W (белый, KLS)
USB-A-111 (белый, KLS)
205F-DAN0-R (белый, ATTEND) 		wiki:cmp:conn:usb2-front-flag-normal.jpg wiki:cmp:conn:usb2-side-normal.jpg wiki:cmp:conn:usb2-footprint-normal.jpg
Reversed
48204-0001 (Molex) 		wiki:cmp:conn:usb2-front-flag-reversed.jpg wiki:cmp:conn:usb2-side-reversed.jpg wiki:cmp:conn:usb2-footprint-reversed.jpg wiki:cmp:conn:footprint-for-reversed.jpg

Network

QSFP

link ext description manufacturer version date lang
1×1
ATK10-5011292-20S.pdf pdf ATK10-5011292-20S QSFP+ 28G 1×1 CAGE 2LP+HEATSINK
ANTENK 		Antenk rev/ A EN
ENG_CD_2170705_D.pdf pdf X-2170705-Y QSFP28 CAGE+HEATSINK+LIGHTPIPE TE EN
LQ-004.pdf pdf LQ-004 - LINK-PP QSFP-28 1×1 CAGE quad Lightpipe, heatsink LINK-PP rev A EN
2×1
ENG_CD_2227669_F.pdf pdf X-2227669-Y QSFP 2×1 Cage+connector TE EN
2×2
ENG_CD_2289129_E.pdf pdf 2289129 QSFP 2×2 TE
c-2289129-2-a-3d.stp stp 2289129-2 zQSFP+/QSFP28, QSFP, QSFP+ & zQSPF+, Cage Assembly with Integrated Connector, 2 x 2, Internal/External EMI Springs, Included Lightpipe, Standard TE
1619_B054_05100_QSFP56_CAGE_压接式_2X2_带导光柱（左上右下）_镀金30U.pdf pdf 1619.B054.05100 QSFP 2×2 UTE
Connector
ENG_CD_1551920_M.pdf pdf 1551920-X zQSFP+ connector 38 POS TE Connectivity TE rev. M EN
ENG_CD_1551920_N.pdf pdf X-1551920-Y zQSFP+ connector 38 POS TE Connectivity TE rev. N EN
LP11F004 (QSFP 38PIN).pdf pdf LP11F004 - LINK-PP QSFP 1×1 38PIN SMD LINK-PP rev A EN
INFO
ENG_DS_5-1773463-0_zQSFP_Plus_Connector_0519.pdf pdf QSFP28/56 and zQSFP+ Interconnects
TE Connectivity Catalog 		TE EN

QSFP Cross Ref

P/N Original Description P/N replacement QTY Price
UTE ANTENK Most Well LINK-PP UTE ANTENK Most Well LINK-PP UTE
1×1
2-2170705-1 Position ZQSFP+ Cage with Heat Sink Connector Press-Fit Through Hole, Right Angle. N/A ATK10-5011292-20S RMWFQ11KS-0C-11 I'm waiting still 5 000 2,72 5,5-6,0
1250 2,86 - MOQ:2000pcs
2×2
2289129-2 zQSFP+/QSFP28, QSFP, QSFP+ & zQSPF+, Cage Assembly with Integrated Connector, 2 x 2, Internal/External EMI Springs, Included Lightpipe, UP 4 LP N/A N/A N/A N/A 5 000
1 250
2289129-3 zQSFP+/QSFP28, QSFP, QSFP+ & zQSPF+, Cage Assembly with Integrated Connector, 2 x 2, Internal/External EMI Springs, Included Lightpipe, Standard, DOWN, 4 LP N/A 160587-00111 RMW160587-00111 N/A 5 000 30,80 32,50
1 250 32,50
2289129-4 zQSFP+/QSFP28, QSFP, QSFP+ & zQSPF+, Cage Assembly with Integrated Connector, 2 x 2, EMI Springs, Included Lightpipe, Standard, UP 4 LP N/A N/A N/A N/A 5 000
1 250
171722-2002 zQSFP+® Interconnect System, Data Rate: QSFP+: 10 Gbps zQSFP: 100 Gbps Ethernet; InfiniBand EDR , zQuad Small Form Factor Pluggable Plus (zQSFP+) Stacked Integrated 2-by-2, Connector and Cage with Metal EMI Gasket, 152 Circuit, Gold (Au) Over Nickel Plated, Up/Down Light Pipe Indicators 1619.B054.05100 ESF200612-C 10738422F020 RMW49021-02M311 I'm waiting still 5 000 21,43 18,90 30,50 8 weeks
1 250 19,90
171722-2003 zQSFP+ and QSFP+ Integrated Product Solutions, Data Rate: QSFP+: 10 Gbps, zQSFP: 100 Gbps Ethernet; InfiniBand EDR , zQuad Small Form Factor Pluggable Plus (zQSFP+) Stacked Integrated 2-by-2 Connector and Cage with Metal EMI Gasket, 152 Circuit, Gold (Au) Over Nickel Plated, Up/Down Light Pipe Indicators 1619.B064.05100 ESF200612-C 10738422F024 RMW49021-00M311 I'm waiting still 5 000 21,43 18,50 30,50 8 weeks
1250 19,50
Connector
1551920-1 zQSPF+Connector, Data Rate (Max) 25 Gb/s, Cable-to-Board, 38 Position, .032 in [.8 mm], Connector System: Cable-to-Board N/A 49000-04M311 RMW49091-00M311 LP11F004 5 000 1,56 2,30 1,90
1 250 2,39
QSFP 2×2 TE 2289129 QSFP 2×2 NONAME
wiki:cmp:conn:te_2289129_footprint.jpg wiki:cmp:conn:qsfp_2x2_noname.jpg

SFP

link ext description manufacturer version date lang
1×2
LP12F001.pdf pdf LP12F001 - LINK-PP SFP+ Cage 1×2 LINK-PP rev A 2012.07.27 EN
1×4
2110069-1 pdf 2110069-1 TE\LINK-PP SFP+ Cage 1×4 + lighpipes LINK-PP, TE
47027-00N011 pdf 47027-00N011 GLGNET SFP+ Cage 1×4 + lighpipes GLGNET
LP14BC01200S-SCNL pdf LP14BC01200S-SCNL LINK-PP SFP+ Cage 1×4 + lighpipes LINK-PP
LP14BC02300S-SCNL pdf LP14BC02300S-SCNL LINK-PP SFP+ Cage 1×4 + lighpipes LINK-PP
2×4
ENG_CD_2007394_D1.pdf pdf 2007394 2×4 SFP+ TE
c-2007394-5-e-3d.stp stp 2007394-5 2×4 SFP+ Cage+Connector+Lightpipes, 16 Gb/s TE
RTS29-DT019-D1S01(SFP+ 2X4 15U__)_Rev A.pdf pdf RTS29-DT019-D1S01 2×4 SFP+ Antenk
RTS29-DT019-D1S01_3D-20220331_Rev1.STEP STEP RTS29-DT019-D1S01 2×4 SFP+ Antenk
Connector
LP11F003.pdf pdf LP11F003 - Link-PP SFP\SFP+ connector 20PIN SMD LINK-PP rev A 2012.08.27 EN
1888247-1 pdf 1888247-1 - TE SFP\SFP+ connector 20PIN SMD
47030-01J191 pdf 47030-01J191 - GLGNET SFP\SFP+ connector 20PIN SMD

RJ-45

link ext description manufacturer version date lang
31133.A1142.994900(5963-S-2X1-正全开窗带8弹-LED（左绿右绿黄）-8C 扁针15U).pdf pdf 31133.A1142.994900 RJ-45 2×1 (RxC) 2x(G+G\Y) UTE
RJSAE5384A2 		UTE rev. A EN
Manufacturer Part Number Портов Скорость Монтаж LEDS Tab pos Описание POE Особенности Замена/ Производитель
LINK-PP LPJ4012GDNL 1 10/100 Base-T THT Y/G DOWN Угловая 7499011125/ Wurth
SI-60182-F/ Belfuse
LINK-PP LPJ1014AHNL 1 10/100 Base-T THT Y/G UP Угловая 480254000/ Molex
SI-50154-F/ Belfuse
SI-50170-G/ Belfuse
LINK-PP LPJ0514GENL 1 10/100 Base-T THT Y/G DOWN Угловая POE+ XFVOIP5E-CLGY1-4MS/ XFMRS
LINK-PP LPJD5011BENL 1 10/100 Base-T THT Y/G UP Угловая 7499010122/ Wurth
HFJV1-E2450-L12/ Halo
LINK-PP LPJD0012BENL 1 10/100 Base-T THT Y/G UP Угловая JD2-0010NL/ Pulse
JD2-0001NL/ Pulse
LINK-PP LPJD4012-9BENL 1 10/100 Base-T THT Y/G UP Угловая SI-46001-F/ Belfuse
LINK-PP LPJD4514BENL 1 10/100 Base-T THT Y/G UP Вертикальная POE+ XRJV-11-01-8-8-4-MD12-2/ X Multiple
XRJV-01V-4-D12-380/ X Multiple
LINK-PP LPJ3011ABNL 1 10/100 Base-T SMD Y/G UP Угловая JB0-1002NL/ Pulse
J3011G21DNL/ Pulse
7498010210A/ Wurth
LINK-PP LPJ17633AFNL 2 10/100 Base-T THT Y/G UP/DOWN Угловая 0845-2G1T-H5/ Belfuse
LINK-PP LPJG0820HENL 1 100/1000 Base-T THT G/Y DOWN Угловая JXD0-0001NL/ Pulse
JKM-0001NL/ Pulse
JD0-0001NL/ Pulse
LINK-PP LPJ16204BENL 1 10/100/1000 Base-T THT Y/G UP Угловая RT9-ZZ-0011/ UDE
LINK-PP LPJG0926HENL 1 10/100/1000 Base-T THT Y/G DOWN Угловая POE+ 5-2337992-8/ TE
LINK-PP LPJD0713BDNL 1 10/100/1000 Base-T THT Y/G UP Вертикальная 203343/ Erni
HFJV1-1G01-L12RL/ Halo
HFJV1-E1G01-L12RL/ Halo
LINK-PP LPJK6071AONL 1 10/100/1000 Base-T THT O/GY UP Угловая POE++ 0826-1X4T-GH-F/ Belfuse
JXD7-0601NL/ Pulse
LINK-PP LPJK7036-8A98NL 1 10/100/1000 Base-T THT O/GY UP Угловая низкопрофильная L829-1J1T-43/ Belfuse
7499111615/ Wurth
LINK-PP LPJ9011-7KONL 1 10/100 Base-T THT O/GY UP Угловая 08B0-1X1T-36-F/ Belfuse
LINK-PP LPJK0036AONL 1 10/100/1000 Base-T THT O/GY UP Угловая 0826-1X1T-43-F/ Belfuse
Amphenol RJHSE5484 1 THT UP Угловая 2-406549-1/ TE
TE 2-406549-1 1 THT UP Угловая RJHSE5484/ Amphenol
TE 6116526-1
6116526-2 		1 THT DOWN Угловая
Connfly DS1128-02 1 THT DOWN Угловая 6116526/ TE
Connfly DS1125-S80BP 1 THT DOWN Угловая H=12
LINK-PP LPJE160HENL 1 THT G/Y DOWN Угловая BACK3.05 59A-31881201211101/ Shareway
LINK-PP LPJE160GDNL 1 THT Y/G DOWN Угловая ESD, BACK3.05 59A-31882201221101/ Shareway
LINK-PP LPJE160H118NL 1 THT GO/G DOWN Угловая BACK3.05 59A-3188(21)201211101/ Shareway
LINK-PP LPJE160CNL 1 THT TDOWN Угловая ESD, BACK3.05 59A-31880201221101/ Shareway
LINK-PP LPJE160DNL 1 THT TDOWN Угловая BACK3.05 59A-31880201241101/ Shareway
LINK-PP LPJE160DNL-1 1 THT TDOWN Угловая REVNUMB
LINK-PP LPJEF118DNL 1 THT TDOWN Угловая L18.4-FRONTPEG
LINK-PP LPJE501DNL 1 THT TUP Угловая

RJ-45 + USB

link ext description manufacturer version date lang
ENG_CD_1909119_C.pdf pdf 1909119 RJ-45 over USB2.0
1909119-1
1909119-4
1-1909119-4
2-1909119-4
cross = TE 1-1909119-4 → UTE 143.1012.11500 		TE rev. C EN
c-1-1909119-4-b-3d.stp stp 1-1909119-4 RJ-45 over USB2.0 w 2LED G\Y
cross = TE 1-1909119-4 → UTE 143.1012.11500 		TE
LPJE305-0BHNL.pdf pdf LPJE305-0BHNL - LINK-PP RJ45 + USB2 w LEDS
substitututes: TE 1-1909119-4, UTE 143.1012.11500 		LINK-PP rev A 2013.09.05 EN

RJ-45(w MAG) + 2xUSB

link ext description manufacturer version date lang
2206151201_UDE-Corp-RU4-ZZ-0105_C2934912.pdf pdf RU4-ZZ-0105 2.5G RJ-45 + 2 USB2.0 UDE
JW0-0009NL pdf JW0-0009NL 100M RJ-45 + 2 USB2.0 Pulse

Edge

OCP

ATK-me10168x340x10 ANTENK 1.6 host\1.6 nic, no offset wiki:cmp:conn:atk-me10168x340x10_dima.jpg wiki:cmp:conn:atk-me10168x340x10_dimb.jpg wiki:cmp:conn:atk-me10168x340x10_dimd.jpg
AGNZA131-P001CC LOTES 1.6 host\1.6 nic, no offset wiki:cmp:conn:agnza131-p001cc_dima.jpg wiki:cmp:conn:agnza131-p001cc_dimb.jpg wiki:cmp:conn:agnza131-p001cc_dimd.jpg
2340321-1 TE 1.6 host\1.6 nic, no offset wiki:cmp:conn:2340321_dima.jpg wiki:cmp:conn:2340321_dimb.jpg wiki:cmp:conn:2340321_dimd.jpg wiki:cmp:conn:2340321_pn.jpg
cme10168x34xx70x AMPHENOL 2.6 host\1.6 nic, no offset wiki:cmp:conn:me10168x34xx70x_dima.jpg wiki:cmp:conn:me10168x34xx70x_dimb.jpg wiki:cmp:conn:me10168x34xx70x_host.jpg wiki:cmp:conn:me10168x34xx70x_pn.jpg

PCIe Gen2&3 X4 V TH

1734774-7 3.1mm 0.3$
2-1775801-1 2.3mm 1$
1871058-2 2mm 6.2$
4-1734774-4
4-1734774-3
3-1734774-2
3-1734774-1
3-1734774-0
2-1734774-9
2-1734774-0
1-1734774-9
1734774-8
1734774-6
1734774-5

PCIe Gen2 X4 V TH

9-1734774-3 2.3mm 1.5$ 25дн
8-1734774-1 2.3mm 1$ 25дн
8-1734774-0 2.3mm 1.2$ 25дн
6-1734774-9 3.1mm 1.5$ 2шт. 4дн
5-1734774-6 3.1mm 1.1$
9-1734774-2
7-1734774-9
7-1734774-8
6-1734774-8
5-1734774-7
5-1734774-5
5-1734774-4

Edge Slot

link ext description manufacturer version date lang
ECM-10-B-H-7-G3-P-A-01.pdf pdf 2.54mm EDGE Slot SMT Straddle Mount Connectors Antenk EN
SL-XXR ali 2.54mm EDGE Slot TH RA Connectors China
KLS1-603C pdf EDGE CARD SLOT 2.54mm Connector Straight and Right Pin Type KLS

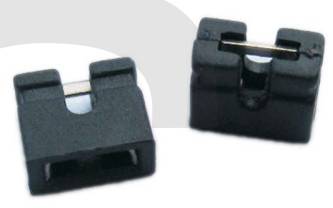

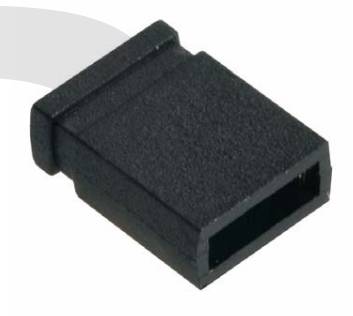

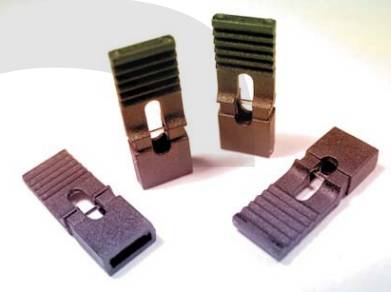

2.54 header machined (цанговые)

link web 2.54mm machined header china, Connfly

Pogopins

https://www.avrobot.ru/product_info.php?products_id=2867
https://www.platan.ru/cgi-bin/qwery.pl/id=2013051580
P50 p50.jpg
P75 p75.jpg
P100 p100.jpg
P125 p125.jpg
P160 p160.jpg
PH ph.jpg

ILM LGA2011

POWER

Power Jack

P\N ID OD Current Voltage Company
DJK-05D 1.3 3.4\3.8 2A 16V
DTD-00020 1.3 3.4\3.8 2A 16V
L-KLS1-DC-002A-1.3 1.3 3.4\3.8 2A 16V KLS
DS-313 1.3 3.4\3.8 2A 16V Dragon City
DJK-02A 2 6.4
K375A 2 6.4
DS-210B 2 6.4 Dragon City
DS-261B-HC 2 6.4 4A 20V Dragon City
L-KLS1-DC-005A-2.0 2 6.4 5A KLS

HDEPC

Huawei 48V power connector:

RF

p\n Mfg Gender R type drawing CL to pcb L
73391-0083 Molex female 50 RA 6.9 14.8 CH 1.6 GNDH 1.6
73391-0320 Molex male 50 RA 6.4 14.8 CH 1.5 GNDH 1.3
73100-0114 Molex female 50 RA 6.4 14.8 CH 1.6 GNDH 1.6
L-KLS1-SMA002-B KLS female 50 RA 6.5 14.5 CH 1.5 GNDH 1.5
SMA-KWE-L13.5 YEXIN? Lineyi? female 50 RA ? ? аналог 73391-0083?
