NMS-SM-RK3588 v1 ds-ru

Процессорный модуль NMS-SM-RK3588 выполнен на основе восьмиядерного процессора RK3568 производства Rockchip, который сочетает в себе четыре высокопроизводительных ядра Cortex-A76, четыре энергоэффективных ядра Cortex-A55, высокопроизводительный NPU и поддержку декодирования видео 8K, благодаря чему обеспечивается высокая вычислительная мощность и оптимальная производительность для многозадачных операций.

Процессорный модуль совместно с основной платой может формировать полноценную высокопроизводительную материнскую плату для промышленного применения и напрямую применяться к различным интеллектуальным продуктам, ускоряя продвижение продукта.

Модуль создан на доступной несанкционной компонентной базе и позволяет стабильно и регулярно выпускать промышленные партии изделий.


Краткое описание возможностей

Основные технические характеристики
Внешние разъемы Краевой разъём в соответствии со SMARC, по стандарту (2.0\2.1)
Процессор RK3588J
Ядра:4х ядра Cortex-A76 с частотой до 2,4 ГГц и 4х ядра Cortex-A55 с частотой 1,8 ГГц в конфигурации DynamIQ
Графический ускоритель: Arm Mali-G610 MP4 «Odin» с поддержкой OpenGLES 1.1, 2.0 и 3.2, OpenCL до 2.2 и Vulkan1.2, 2D-графический механизм до 8192 × 8192 источника, 4096 × 4096 назначения
Видеоускоритель: 8Kp60 H.265, VP9, AVS2, 8Kp30 H.264 AVC / MVC, 4Kp60 AV1, 1080p60 MPEG-2 / -1, VC-1, VP8, кодирование 8Kp30 в реальном времени с H.265 / H.264; поддерживается многоканальное кодирование при более низких разрешениях
Нейросопроцессор: 6 TOPS NPU 3.0 (Neural Processing Unit). Поддержка INT8/16, FP16/BFP16. Поддержка фреймворков: TensorFlow, Pytorch, Caffe, ONNX, MXNet, Keras, Darknet
ОЗУ Память: 2 канала LPDDR4x-4267 х 32, 4/8/16/32 ГБайт суммарного объема
Флэш-память Поддержка eMMC 5.1/5.0/4.51, режимы HS400, HS200, DDR50. Объем 16ГБ/32ГБ/64ГБ и более
ЭСППЗУ 2 Кбита, доступ по I2C, уникальный идентификатор 48 бит (24AA025)
ИС управления питанием PMIC (RK806-1)
Прочие компоненты Часы реального времени RTC (PCF8523TK)
2x Гигабит ETH PHY (DAP8211RI)
MIPIDSIto2LVDS (SN65DSI84ZQER )
PCIe Gen 4 Clock Generator (PI6CG184Q2)
Датчик измерения тока потребления модуля (NCS211RSQT2G)
I2C-GPIO расширитель (TPT29555-TS5R)
Интерфейсы 2x USB 2.0 Host
2x USB 2.0/3.0 OTG
PCIe 3.0 (конфигурация 1 x 4, 2 x 2 или 4 х 1 )
2x CAN
4x UART (SER0 и SER2 4-x проводные (Rx, Tx, RTS, CTS), SER1 и SER3 двухпроводные (Rx, Tx))
2x SPI
4x I2C
1x I2S
2x PWM
1x SATA
1x HDMI
1x DP
2x LVDS (MIPI DSI→ 2LVDS BRIDGE)
1x CSI0 2 lanes
1x CSI1 4 lanes
1x SDIO
2x ETH 1GB (ETH PHY)
13x GPIO
Напряжение питания +5 Вольт
Потребление TBD
Габаритные размеры 82×50 мм

Файлы для загрузки

Файлы для загрузки
Название документа Краткое описание Версия Дата
nms-sm-evm_v1_prod_sch.pdf Схема электрическая принципиальная отладочной платы SMARC: NMS-SM-EVM v1 v1 2022.09.15
nms_sm_rk3588_v1_prod.step STEP-файл модуля NMS-SM-RK3588 v1 v1 2024.06.21

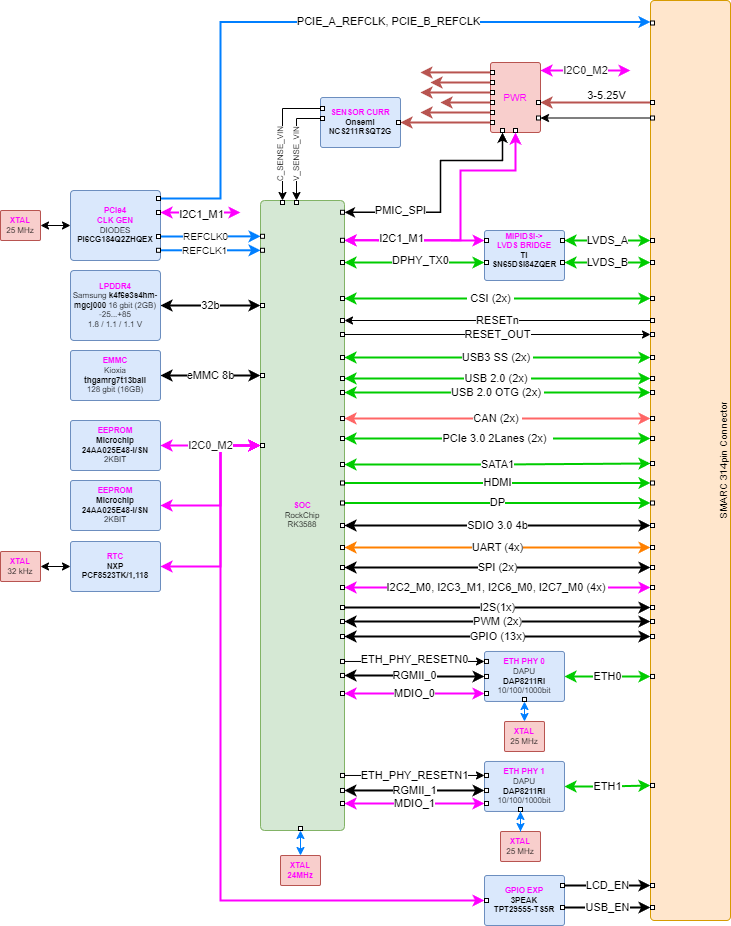

Структурная схема модуля

Структурная схема модуля



Механические характеристики

Размер платы : 82 х 50 мм.
Печатная плата состоит из 12 слоев, часть из которых являются заземляющими для подавления помех.

Габаритные размеры



Основные аппаратные компоненты

Расположение компонентов на плате

Вид сверху

Расположение компонентов на плате. Вид сверху


Наименование компонентов на плате на верхней стороне
Позиционное
обозначение 		P/N Описание
D1 PI6CG184Q2ZHQEX PCIe CLK GEN
D2, D4 RK860-2 DCDC 6A
D3 RK860-3 DCDC 7A
D5 RT5753AHGQWA DCDC 4A
D6 SGM2576YN5G POW SW
D7 PCF8523TK/1,118 RTC
D8, D9 RS2T45XM LOGIC BUF
D16_ETH_A, D16_ETH_B DAP8211RI ETH PHY 1G
U1 RK3588 CPU
U2 RK806-1 PMIC
U3 THGAMRG7T13BAIL* EMMC
U6 RT5789AGQUF DCDC 6A
U7 SN65DSI84ZQER MIPIDSIto2LVDS BRIDGE
U8 SGM2578AADYG_TR POW SW
U11, U12 K4F6E3S4HM-MGCJ000* LPDDR4

* - партномера микросхем памяти могут меняться в зависимости от конфигурации модуля и номера партии.

Вид снизу

Расположение компонентов на плате. Вид снизу


Наименование компонентов на плате на нижней стороне
Позиционное
обозначение 		P/N Описание
U4, U5 24AA025E48T-I/OT EEPROM 2KBIT
D10 NCS211RSQT2G CURR SENS
D11 TPT29555-TS5R 16-bit GPIO EXPANDER

Процессор

На рисунке 5 показаны функциональные модули в процессорной системе RK3568.

Функциональные модули Rockchip RK3588


Основные преимущества процессора:

  • Встроенный графический процессор (GPU) Mali-G610 MP4 обеспечивает высокую производительность в графически интенсивных приложениях, таких как игры, виртуальная реальность и обработка изображений.
  • Процессор поддерживает декодирование и кодирование видео 8K, что делает его идеальным для использования в мультимедийных приложениях, включая умные телевизоры, стриминговые устройства и медиаплееры.
  • Поддержка множества интерфейсов, включая HDMI 2.1, PCIe 3.0, USB 3.2, и SATA 3.0, позволяет легко интегрировать процессор в различные системы и устройства.
  • Встроенный NPU (Neural Processing Unit) обеспечивает ускорение задач машинного обучения и искусственного интеллекта, таких как распознавание лиц, голосовой интерфейс и обработка естественного языка.
  • RK3588 разработан с учетом энергоэффективности, что позволяет использовать его в устройствах с ограниченным энергопотреблением, таких как портативные устройства и IoT.
  • Процессор поддерживает множество операционных систем, включая Android, Linux, и другие, что обеспечивает гибкость при разработке программного обеспечения.
  • Высокая производительность в многозадачных приложениях благодаря архитектуре big.LITTLE, которая позволяет эффективно распределять задачи между высокопроизводительными и энергоэффективными ядрами.
  • Процессор поддерживает до 32 ГБ LPDDR4/4x памяти, обеспечивая высокую пропускную способность и быструю работу с большими объемами данных.

Расположение разъемов на плате

Вид сверху

Расположение разъемов на плате. Вид сверху



Вид снизу

На нижней стороне платы разъемы отсутствуют.

Распиновка разъемов

Распиновка разъема X1 согласно SMARC

Pin # Name STANDART Signals_SM_RK3588 CPU PIN CPU Function
IO description
Func1
Func2
Func3
Func4
Func5
Func6 		Group I/O Type I/O Level PU / PD SM_RK3588 Description Power Domain Comments
P1 SMB_ALERT# NC - MANAGEMENT I OD CMOS 1V8…5V SMBus Alert# (Interrupt) Signal Standby/Sleep

P2 GND GND PWR GND
P3 CSI1_CK+ CSI_1.C0._P AK20 CSI1 I D-PHY CSI1 differential clock input (point to point) Runtime
P4 CSI1_CK- CSI_1.C0._N AL20 CSI1 I D-PHY CSI1 differential clock input (point to point) Runtime
P5 GBE1_SDP NC - GBE1 I/O CMOS 3V3 IEEE 1588 Trigger Signal for Hardware Implementation of PTP (Precision Time Protocol) Standby
P6 GBE0_SDP NC - GBE0 I/O CMOS 3V3 IEEE 1588 Trigger Signal for Hardware Implementation of PTP (Precision Time Protocol) Standby
P7 CSI1_RX0+ CSI_1.D0._P AK18 CSI1 I D-PHY
/ I M-PHY 		CSI1 differential input (point to point) Runtime
P8 CSI1_RX0- CSI_1.D0._N AL18 CSI1 I D-PHY
/ I M-PHY 		CSI1 differential input (point to point) Runtime
P9 GND GND PWR GND
P10 CSI1_RX1+ CSI_1.D1._P AK19 CSI1 I D-PHY
/ I M-PHY 		CSI1 differential input (point to point) Runtime
P11 CSI1_RX1- CSI_1.D1._N AL19 CSI1 I D-PHY
/ I M-PHY 		CSI1 differential input (point to point) Runtime
P12 GND GND PWR GND
P13 CSI1_RX2+ CSI_1.D2._P AK21 CSI1 I D-PHY
/ I M-PHY 		CSI1 differential input (point to point) Runtime
P14 CSI1_RX2- CSI_1.D2._N AL21 CSI1 I D-PHY
/ I M-PHY 		CSI1 differential input (point to point) Runtime
P15 GND GND PWR GND
P16 CSI1_RX3+ CSI_1.D3._P AK22 CSI1 I D-PHY
/ I M-PHY 		CSI1 differential input (point to point) Runtime
P17 CSI1_RX3- CSI_1.D3._N AL22 CSI1 I D-PHY
/ I M-PHY 		CSI1 differential input (point to point) Runtime
P18 GND GND PWR GND
P19 GBE0_MDI3- ETH_0.MDI3._N - GBE0 I/O GBE MDI Differential Pair Signals for External Transformer Standby D16-ETH-A.10
P20 GBE0_MDI3+ ETH_0.MDI3._P - GBE0 I/O GBE MDI Differential Pair Signals for External Transformer Standby D16-ETH-A.9
P21 GBE0_LINK100# LED_0_100# - GBE0 O OD CMOS 3V3 PU 10K Link Speed Indication LED for GBE0 100Mbps Standby D16-ETH-A.32, PU10K
P22 GBE0_LINK1000# LED_0_1000# - GBE0 O OD CMOS 3V3 PU 10K Link Speed Indication LED for GBE0 1000Mbps Standby D16-ETH-A.34 PU10K
P23 GBE0_MDI2- ETH_0.MDI2._N - GBE0 I/O GBE MDI Differential Pair Signals for External Transformer Standby D16-ETH-A.7
P24 GBE0_MDI2+ ETH_0.MDI2._P - GBE0 I/O GBE MDI Differential Pair Signals for External Transformer Standby D16-ETH-A.6
P25 GBE0_LINK_ACT# LED_0_ACT# - GBE0 O OD CMOS 3V3 PU 10K Link / Activity Indication LED Driven Low on Link (10, 100 or 1000 Mbps) Blinks on Activity Standby D16-ETH-A.33 PU10K
P26 GBE0_MDI1- ETH_0.MDI1._N - GBE0 I/O GBE MDI Differential Pair Signals for External Transformer Standby D16-ETH-A.5
P27 GBE0_MDI1+ ETH_0.MDI1._P - GBE0 I/O GBE MDI Differential Pair Signals for External Transformer Standby D16-ETH-A.4
P28 GBE0_CTREF Unconnected - GBE0 Analog 0…3V3 Center-Tap Reference Voltage for Carrier Board Ethernet Magnetic (if required by the Module GBE PHY) Standby
P29 GBE0_MDI0- ETH_0.MDI0._N - GBE0 I/O GBE MDI Differential Pair Signals for External Transformer Standby D16-ETH-A.2
P30 GBE0_MDI0+ ETH_0.MDI0._P - GBE0 I/O GBE MDI Differential Pair Signals for External Transformer Standby D16-ETH-A.1
P31 SPI0_CS1# SPI0_M2.CS1 E25 SPI0 O CMOS 1V8 SPI0 Master Chip Select 1 Standby
P32 GND GND PWR GND
P33 SDIO_WP Unconnected - SDIO I OD CMOS 1V8 or 3V3 SDIO Write Protect. This signal denotes the state of the write-protect tab on SD cards. Runtime
P34 SDIO_CMD SDMMC.CMD AE2 SDIO I/O CMOS 1V8 or 3V3 SDIO Command/Response. This signal is used for card initialization and for command transfers. During initialization mode this signal is open drain. During command transfer this signal is in push-pull mode. Runtime
P35 SDIO_CD# SDMMC_DET P31 SDIO I OD CMOS 1V8 or 3V3 PU 100K SDIO Card Detect. This signal indicates when a SDIO/MMC card is present. Runtime
P36 SDIO_CK SDMMC.CLK AE1 SDIO O CMOS 1V8 or 3V3 SDIO Clock. With each cycle of this signal a one-bit transfer on the
command and each data line occurs. 		Runtime SDIO controller will detect SD Cards voltage level (1.8V for UHS-I and 3.3V for standard) and adjust its I/O voltage level accordingly
P37 SDIO_PWR_EN SD_PWREN P33 SDIO O CMOS 3V3 SDIO Power Enable. This signal is used to enable the power being supplied to a SD/MMC card device. Runtime
P38 GND GND PWR GND
P39 SDIO_D0 SDMMC.D0 AD2 SDIO I/O CMOS 1V8 or 3V3 SDIO Data lines. These signals operate in push-pull mode. Runtime
P40 SDIO_D1 SDMMC.D1 AD1 SDIO I/O CMOS 1V8 or 3V3 SDIO Data lines. These signals operate in push-pull mode. Runtime
P41 SDIO_D2 SDMMC.D2 AF2 SDIO I/O CMOS 1V8 or 3V3 SDIO Data lines. These signals operate in push-pull mode. Runtime
P42 SDIO_D3 SDMMC.D3 AF1 SDIO I/O CMOS 1V8 or 3V3 SDIO Data lines. These signals operate in push-pull mode. Runtime
P43 SPI0_CS0# SPI0_M2.CS0 E24 SPI0 O CMOS 1V8 SPI0 Master Chip Select 0 Standby This signal can be used to select Carrier SPI as boot device
P44 SPI0_CK SPI0_M2.CLK D27 SPI0 O CMOS 1V8 SPI0 Clock Standby
P45 SPI0_DIN SPI0_M2.MISO D25 SPI0 I CMOS 1V8 SPI0 Master input / Slave output Standby also referred to as MISO
P46 SPI0_DO SPI0_M2.MOSI D26 SPI0 O CMOS 1V8 SPI0 Master output / Slave input Standby also referred to as MOSI
P47 GND GND PWR GND
P48 SATA_TX+ SATA_TX_P K33 SATA O SATA Serial ATA Channel 0
Transmit Output Differential Pair 		Runtime Series AC coupled on 10 nF Module
P49 SATA_TX- SATA_TX_N K34 SATA O SATA Serial ATA Channel 0
Transmit Output Differential Pair 		Runtime Series AC coupled on 10 nF Module
P50 GND GND PWR GND
P51 SATA_RX+ SATA_RX_P J33 SATA I SATA Serial ATA Channel 0
Receive Input Differential Pair 		Runtime Series AC coupled on 10 nF Module
P52 SATA_RX- SATA_RX_N J34 SATA I SATA Serial ATA Channel 0
Receive Input Differential Pair 		Runtime Series AC coupled on 10 nF Module
P53 GND GND PWR GND
P54 ESPI_CS0# / SPI1_CS0# / QSPI_CS0# SPI4_M2.CS0 A27 SPI1 O CMOS 1V8 SPI1 Master Chip Select 0 Standby
P55 ESPI_CS1# / SPI1_CS1# / QSPI_CS1# Unconnected - SPI1 O CMOS 1V8 SPI1 Master Chip Select 1 Standby
P56 ESPI_CK / SPI1_CK / QSPI_CK SPI4_M2.CLK A26 SPI1 O CMOS 1V8 SPI1 Clock Standby
P57 ESPI_IO_1 / SPI1_DIN / QSPI_IO_1 SPI4_M2.MISO A24 SPI1 I CMOS 1V8 SPI1 Master input / Slave output Standby also referred to as MISO
P58 ESPI_IO_0 / SPI1_DO / QSPI_IO_0 SPI4_M2.MOSI A25 SPI1 O CMOS 1V8 SPI1 Master output / Slave input Standby also referred to as MOSI
P59 GND GND PWR GND
P60 USB0+ HOST_0.D_P AK6 USB0 I/O USB USB USB Differential Data Pairs for Port 0 Standby
P61 USB0- HOST_0.D_M AL6 USB0 I/O USB USB USB Differential Data Pairs for Port 0 Standby
P62 USB0_EN_OC# USB0_EN_OC# - USB0 I/O OD CMOS PU 10K USB Over-Current Sense for Port 0 Standby D11.20 / D11.16 PU 10K
P63 USB0_VBUS_DET Unconnected - USB0 I USB VBUS 5V USB VBUS 5V USB Port 0 Host Power Detection Standby
P64 USB0_OTG_ID Unconnected - USB0 Input Pin to Announce OTG Device
Insertion on USB 2.0 Port 		Standby
P65 USB1+ HOST_1.D_P AL7 USB1 I/O USB USB USB Differential Data Pairs for Port 1 Standby
P66 USB1- HOST_1.D_M AM7 USB1 I/O USB USB USB Differential Data Pairs for Port 1 Standby
P67 USB1_EN_OC# USB1_EN_OC# - USB1 I/O OD CMOS PU 10K USB Over-Current Sense for Port 1 Standby D11.19 / D11.15 PU 10K
P68 GND GND PWR GND
P69 USB2+ OTG_1_D_P AK9 USB2 I/O USB USB USB Differential Data Pairs for Port 2 Standby
P70 USB2- OTG_1_D_N AL9 USB2 I/O USB USB USB Differential Data Pairs for Port 2 Standby
P71 USB2_EN_OC# USB2_EN_OC# - USB2 I/O OD CMOS PU 10K USB Over-Current Sense for Port 2 Standby D11.18 / D11.14 PU 10K
P72 RSVD Unconnected -
P73 RSVD Unconnected -
P74 USB3_EN_OC# USB3_EN_OC# - USB3 I/O OD CMOS PU 10K USB Over-Current Sense for Port 3 Standby D11.17 / D11.13 PU 10K
P75 PCIE_A_RST# PCIE_A_PERST AJ27 PCIEA O CMOS PCIe Port A reset output Runtime
P76 USB4_EN_OC# Unconnected - USB4 I/O OD CMOS USB Over-Current Sense for Port 4 Standby Pulled low by Module OD driver to disable USB4 power. Pulled low by
Carrier OD driver to indicate overcurrent situation.
P77 PCIE_B_CKREQ# PCIE_B_CKREQ - PCIEB IO OD CMOS PCIe Port B clock request Runtime D1.17
P78 PCIE_A_CKREQ# PCIE_A_CKREQ - PCIEA IO OD CMOS PCIe Port A clock request Runtime D1.12
P79 GND GND PWR GND
P80 PCIE_C_REFCK+ NC - PCIEC O PCIE Differential PCIe Link C reference clock output Runtime
P81 PCIE_C_REFCK- NC - PCIEC O PCIE Differential PCIe Link C reference clock output Runtime
P82 GND GND PWR GND
P83 PCIE_A_REFCK+ PCIE3_A_REFCLK._P - PCIEA O PCIE Differential PCIe Link A reference clock output Runtime D1.14
P84 PCIE_A_REFCK- PCIE3_A_REFCLK._N - PCIEA O PCIE Differential PCIe Link A reference clock output Runtime D1.13
P85 GND GND PWR GND
P86 PCIE_A_RX+ PCIE_A_RX_P G33 PCIEA I PCIE Differential PCIe link A receive data pair Runtime
P87 PCIE_A_RX- PCIE_A_RX_N G34 PCIEA I PCIE Differential PCIe link A receive data pair Runtime
P88 GND GND PWR GND
P89 PCIE_A_TX+ PCIE_A_TX_P D32 PCIEA O PCIE Differential PCIe link A transmit data pair Runtime Series AC coupled on Module 75-265 nF depending on PCIe generation
P90 PCIE_A_TX- PCIE_A_TX_N D33 PCIEA O PCIE Differential PCIe link A transmit data pair Runtime Series AC coupled on Module 75-265 nF depending on PCIe generation
P91 GND GND PWR GND
P92 HDMI_D2+ / DP1_LANE0+ HDMI_TX_0.D2._P AL24 / AL2 HDMI O TMDS HDMI HDMI Port, Differential Pair Data Lines Runtime
P93 HDMI_D2- / DP1_LANE0- HDMI_TX_0.D2._N AL24 / AL1 HDMI O TMDS HDMI HDMI Port, Differential Pair Data Lines Runtime
P94 GND GND PWR GND
P95 HDMI_D1+ / DP1_LANE1+ HDMI_TX_0.D1._P AL24 / AK3 HDMI O TMDS HDMI HDMI Port, Differential Pair Data Lines Runtime
P96 HDMI_D1- / DP1_LANE1- HDMI_TX_0.D1._N AL24 / AK2 HDMI O TMDS HDMI HDMI Port, Differential Pair Data Lines Runtime
P97 GND GND PWR GND
P98 HDMI_D0+ / DP1_LANE2+ HDMI_TX_0.D0._P AJ2 HDMI O TMDS HDMI HDMI Port, Differential Pair Data Lines Runtime
P99 HDMI_D0- / DP1_LANE2- HDMI_TX_0.D0._N AJ1 HDMI O TMDS HDMI HDMI Port, Differential Pair Data Lines Runtime
P100 GND GND PWR GND
P101 HDMI_CK+ / DP1_LANE3+ HDMI_TX_0.D3._P AH3 HDMI O TMDS HDMI HDMI Port, Differential Pair Clock Lines Runtime
P102 HDMI_CK- / DP1_LANE3- HDMI_TX_0.D3._N AH2 HDMI O TMDS HDMI HDMI Port, Differential Pair Clock Lines Runtime
P103 GND GND PWR GND
P104 HDMI_HPD / DP1_HPD HDMI_TX0_HPD B26 HDMI I CMOS 1V8 HDMI Hot Plug Active High Detection Signal that Serves as an Interrupt Request Runtime
P105 HDMI_CTRL_CK / DP1_AUX+ HDMI0_I2C.SCL AJ24 HDMI I/O OD CMOS 1V8 PU 2K2 I2C_CLK Line Dedicated to HDMI Runtime
P106 HDMI_CTRL_DAT / DP1_AUX- HDMI0_I2C.SDA AH24 HDMI I/O OD CMOS 1V8 PU 2K2 I2C_DAT Line Dedicated to HDMI Runtime
P107 DP1_AUX_SEL Unconnected - DP1++_HDMI I CMOS 1V8 Strapping Signal to Enable
Either HDMI or DP Output 		Runtime 0 - DP
1 - HDMI
P108 GPIO0 / CAM0_PWR# GPIO0 E30 GPIO I/O CMOS 1V8 GPIO Pin 0 Preferred Output Runtime Shared with CAM0_PWR#
P109 GPIO1 / CAM1_PWR# GPIO1 D29 GPIO I/O CMOS 1V8 GPIO Pin 1 Preferred Output Runtime Shared with CAM1_PWR#
P110 GPIO2 / CAM0_RST# GPIO2 AB30 GPIO I/O CMOS 1V8 GPIO Pin 2 Preferred Output Runtime Shared with CAM0_RST#
P111 GPIO3 / CAM1_RST# GPIO3 AB31 GPIO I/O CMOS 1V8 GPIO Pin 3 Preferred Output Runtime Shared with CAM1_RST#
P112 GPIO4 / HDA_RST# GPIO4 AD30 GPIO I/O CMOS 1V8 GPIO Pin 4 Preferred Output Runtime
P113 GPIO5 / PWM_OUT PWM1_M1 E28 GPIO I/O CMOS 1V8 GPIO Pin 5 Preferred Output Runtime
P114 GPIO6 / TACHIN GPIO6 AC30 GPIO I/O CMOS 1V8 GPIO Pin 6 Preferred Output Runtime
P115 GPIO7 GPIO7 AE30 GPIO I/O CMOS 1V8 GPIO Pin 7 Preferred Output Runtime
P116 GPIO8 GPIO8 Y27 GPIO I/O CMOS 1V8 GPIO Pin 8 Preferred Output Runtime
P117 GPIO9 GPIO9 AE29 GPIO I/O CMOS 1V8 GPIO Pin 9 Preferred Output Runtime
P118 GPIO10 GPIO10 AG23 GPIO I/O CMOS 1V8 GPIO Pin 10 Preferred Output Runtime
P119 GPIO11 GPIO11 C24 GPIO I/O CMOS 1V8 GPIO Pin 11 Preferred Output Runtime
P120 GND GND PWR GND
P121 I2C_PM_CK I2C_PM.SCL W31 MANAGEMENT I/O OD CMOS 1V8 PU 2K2 Power management I2C bus CLK Standby/Sleep
P122 I2C_PM_DAT I2C_PM.SDA V31 MANAGEMENT I/O OD CMOS 1V8 PU 2K2 Power management I2C bus DATA Standby/Sleep
P123 BOOT_SEL0# BOOTSEL_0 AM16 BOOT I OD CMOS 1V8 PU 100K Input straps determine the Module boot device. Standby
P124 BOOT_SEL1# NC - BOOT I OD CMOS 1V8 Input straps determine the Module boot device. Standby
P125 BOOT_SEL2# NC - BOOT I OD CMOS 1V8 Input straps determine the Module boot device. Standby
P126 RESET_OUT# RESET_OUT U33 MANAGEMENT O CMOS 1V8 General purpose reset output to Carrier Board. Standby
P127 RESET_IN# RESET_L M31 MANAGEMENT I OD CMOS 1V8…5V PU 10K Reset input from Carrier Board. Carrier drives low to force a Module reset, floats the line otherwise. This signal Shall be level triggered during bootup to allow to stop booting of the module.
After bootup it May act as an edge triggered signal. 		Standby
P128 POWER_BTN# PWRON_KEY - MANAGEMENT I OD CMOS 1V8…5V PU 10K Power-button input from Carrier Board. Carrier to float the line in in-active state. Active low, level sensitive.
Should be debounced on the Module. 		Sleep U2.4 (100R)
P129 SER0_TX UART1_M1.TXD E26 SER0 O CMOS 1V8 Asynchronous Serial Data Output Port 0 Runtime
P130 SER0_RX UART1_M1.RXD E27 SER0 I CMOS 1V8 PU 100K Asynchronous Serial Data Input Port 0 Runtime
P131 SER0_RTS# UART1_M1.RTS F24 SER0 O CMOS 1V8 Request to Send Handshake Line for Port 0 Runtime
P132 SER0_CTS# UART1_M1.CTS F25 SER0 I CMOS 1V8 PU 100K Clear to Send Handshake Line for Port 0 Runtime
P133 GND GND PWR GND
P134 SER1_TX UART2_M0.TXD P29 SER1 O CMOS 1V8 Asynchronous Serial Data Output Port 1 Runtime
P135 SER1_RX UART2_M0.RXD R29 SER1 I CMOS 1V8 PU 100K Asynchronous Serial Data Input Port 1 Runtime
P136 SER2_TX UART9_M2.TXD AB28 SER2 O CMOS 1V8 Asynchronous Serial Data Output Port 2 Runtime
P137 SER2_RX UART9_M2.RXD AA27 SER2 I CMOS 1V8 PU 100K Asynchronous Serial Data Input Port 2 Runtime
P138 SER2_RTS# UART9_M2.RTS AG25 SER2 O CMOS 1V8 Request to Send Handshake Line for Port 2 Runtime
P139 SER2_CTS# UART9_M2.CTS AG24 SER2 I CMOS 1V8 Clear to Send Handshake Line for Port 2 Runtime
P140 SER3_TX SER3.TXD G27 SER3 O CMOS 1V8 Asynchronous Serial Data Output Port 3 Runtime
P141 SER3_RX SER3.RXD G29 SER3 I CMOS 1V8 PU 100K Asynchronous Serial Data Input Port 3 Runtime
P142 GND GND PWR GND
P143 CAN0_TX CAN0.TXD AH25 CAN0 O CMOS 1V8 CAN Port 0 Transmit Output Runtime
P144 CAN0_RX CAN0.RXD AH26 CAN0 I CMOS 1V8 CAN Port 0 Receive Input Runtime
P145 CAN1_TX CAN1.TXD - CAN1 O CMOS 1V8 CAN Port 1 Transmit Output Runtime D8.7
P146 CAN1_RX CAN1.RXD - CAN1 I CMOS 1V8 CAN Port1 Receive Input Runtime D9.7
P147 VDD_IN VCC_5V0 PWR 3V…5.25V
P148 VDD_IN VCC_5V0 PWR 3V…5.25V
P149 VDD_IN VCC_5V0 PWR 3V…5.25V
P150 VDD_IN VCC_5V0 PWR 3V…5.25V
P151 VDD_IN VCC_5V0 PWR 3V…5.25V
P152 VDD_IN VCC_5V0 PWR 3V…5.25V
P153 VDD_IN VCC_5V0 PWR 3V…5.25V
P154 VDD_IN VCC_5V0 PWR 3V…5.25V
P155 VDD_IN VCC_5V0 PWR 3V…5.25V
P156 VDD_IN VCC_5V0 PWR 3V…5.25V
S1 CSI1_TX+ / I2C_CAM1_CK I2C_CAM1.SCL AA28 CSI1 I/O OD CMOS 1V8 PU 2K2 I2C clock for serial camera data support link or differential data lane Runtime CSI2.0
S2 CSI1_TX- / I2C_CAM1_DAT I2C_CAM1.SDA Y29 CSI1 I/O OD CMOS 1V8 PU 2K2 I2C data for serial camera data support link or differential data lane Runtime CSI2.0
S3 GND GND PWR GND
S4 RSVD Unconnected -
S5 CSI0_TX+ / I2C_CAM0_CK I2C_CAM0.SCL F26 CSI0 I/O OD CMOS 1V8 PU 2K2 I2C clock for serial camera data support link or differential data lane Runtime CSI2.0
S6 CAM_MCK MIPI_CAMERA1_CLK_M1 AH27 CSI O CMOS 1V8 Master clock output Runtime
S7 CSI0_TX- / I2C_CAM0_DAT I2C_CAM0.SDA F27 CSI0 I/O OD CMOS 1V8 PU 2K2 I2C data for serial camera data support link or differential data lane Runtime CSI2.0
S8 CSI0_CK+ CSI_0.C0._P AN32 CSI0 I D-PHY CSI0 differential clock input (point to point) Runtime
S9 CSI0_CK- CSI_0.C0._N AP31 CSI0 I D-PHY CSI0 differential clock input (point to point) Runtime
S10 GND GND PWR GND
S11 CSI0_RX0+ CSI_0.D0._P AN29 CSI0 I D-PHY
/ I M-PHY 		CSI0 differential input Runtime
S12 CSI0_RX0- CSI_0.D0._N AP29 CSI0 I D-PHY
/ I M-PHY 		CSI0 differential input Runtime
S13 GND GND PWR GND
S14 CSI0_RX1+ CSI_0.D1._P AN30 CSI0 I D-PHY
/ I M-PHY 		CSI0 differential input Runtime
S15 CSI0_RX1- CSI_0.D1._N AP30 CSI0 I D-PHY
/ I M-PHY 		CSI0 differential input Runtime
S16 GND GND PWR GND
S17 GBE1_MDI0+ ETH_1.MDI0._P - GBE1 I/O GBE MDI Differential Pair Signals for External Transformer Standby D16-ETH-B.1
S18 GBE1_MDI0- ETH_1.MDI0._N - GBE1 I/O GBE MDI Differential Pair Signals for External Transformer Standby D16-ETH-B.2
S19 GBE1_LINK100# LED_1_100# - GBE1 O OD CMOS 3V3 Link Speed Indication LED for GBE1 100Mbps Standby D16-ETH-B.32 PU 10K
S20 GBE1_MDI1+ ETH_1.MDI1._P - GBE1 I/O GBE MDI Differential Pair Signals for External Transformer Standby D16-ETH-B.4
S21 GBE1_MDI1- ETH_1.MDI1._N - GBE1 I/O GBE MDI Differential Pair Signals for External Transformer Standby D16-ETH-B.5
S22 GBE1_LINK1000# LED_1_1000# - GBE1 O OD CMOS 3V3 Link Speed Indication LED for GBE1 1000Mbps Standby D16-ETH-B.34 PU 10K
S23 GBE1_MDI2+ ETH_1.MDI2._P - GBE1 I/O GBE MDI Differential Pair Signals for External Transformer Standby D16-ETH-B.6
S24 GBE1_MDI2- ETH_1.MDI2._N - GBE1 I/O GBE MDI Differential Pair Signals for External Transformer Standby D16-ETH-B.7
S25 GND GND PWR GND
S26 GBE1_MDI3+ ETH_1.MDI3._P - GBE1 I/O GBE MDI Differential Pair Signals for External Transformer Standby D16-ETH-B.9
S27 GBE1_MDI3- ETH_1.MDI3._N - GBE1 I/O GBE MDI Differential Pair Signals for External Transformer Standby D16-ETH-B.10
S28 GBE1_CTREF Unconnected - GBE1 Analog 0…3V3 Center-Tap Reference Voltage for Carrier Board Ethernet Magnetic (if required by the Module GBE PHY) Standby
S29 PCIE_D_TX+ / SERDES_0_TX+ PCIE_D_TX_P C29 PCIED O PCIE Differential PCIe link D transmit data pair Runtime Series AC coupled on Module 75-265 nF depending on PCIe generation
S30 PCIE_D_TX- / SERDES_0_TX- PCIE_D_TX_N B29 PCIED O PCIE Differential PCIe link D transmit data pair Runtime Series AC coupled on Module 75-265 nF depending on PCIe generation
S31 GBE1_LINK_ACT# LED_1_ACT# - GBE1 O OD CMOS 3V3 Link / Activity Indication LED Driven Low on Link (10, 100 or 1000 Mbps) Blinks on Activity Standby D16-ETH-B.33 PU 10K
S32 PCIE_D_RX+ / SERDES_0_RX+ PCIE_D_RX_P C31 PCIED I PCIE Differential PCIe link D receive data pair Runtime
S33 PCIE_D_RX- / SERDES_0_RX- PCIE_D_RX_N B31 PCIED I PCIE Differential PCIe link D receive data pair Runtime
S34 GND GND PWR GND
S35 USB4+ NC - USB4 I/O USB USB USB Differential Data Pairs for Port 4 Standby
S36 USB4- NC - USB4 I/O USB USB USB Differential Data Pairs for Port 4 Standby
S37 USB3_VBUS_DET OTG_0_VBUS AM14 USB3 I USB VBUS 5V USB VBUS 5V USB Port 3 Host Power Detection Standby
S38 AUDIO_MCK I2S0.MCK F30 I2S O CMOS 1V8 Master Clock Output to I2S Codec(s) Runtime
S39 I2S0_LRCK I2S0.LRCK D30 I2S0 I/O CMOS 1V8 I2S0 Left & Right Synchronization Clock Runtime Module Output if CPU acts in Master Mode. Module Input if CPU acts in Slave Mode
S40 I2S0_SDOUT I2S0.SDOUT E29 I2S0 O CMOS 1V8 I2S0 Digital Audio Output Runtime
S41 I2S0_SDIN I2S0.SDIN D28 I2S0 I CMOS 1V8 I2S0 Digital Audio Input Runtime
S42 I2S0_CK I2S0.CLK E31 I2S0 I/O CMOS 1V8 I2S0 Digital Audio Clock Runtime Module Output if CPU acts in Master Mode Module Input if CPU acts in Slave Mode
S43 ESPI_ALERT0# ESPI_ALERT0 C25 eSPI I OD CMOS 1V8 ESPI ALERT Standby
S44 ESPI_ALERT1# ESPI_ALERT1 C27 eSPI I OD CMOS 1V8 ESPI ALERT Standby
S45 MDIO_CLK Unconnected - SERDES O CMOS 1V8 MDIO Signals to Configure Possible PHYs
S46 MDIO_DAT Unconnected - SERDES I/O OD CMOS 1V8 MDIO Signals to Configure Possible PHYs
S47 GND GND PWR GND
S48 I2C_GP_CK I2C_GP.SCL T31 I2C_GP I/O OD CMOS 1V8 PU 2K2 General Purpose I2C Clock Signal Runtime
S49 I2C_GP_DAT I2C_GP.SDA T28 I2C_GP I/O OD CMOS 1V8 PU 2K2 General Purpose I2C Data Signal Runtime
S50 HDA_SYNC / I2S2_LRCK Unconnected - I2S2 I/O CMOS 1V8 I2S2 Left & Right Synchronization Clock Runtime Module Output if CPU acts in Master Mode. Module Input if CPU acts in Slave Mode
S51 HDA_SDO / I2S2_SDOUT Unconnected - I2S0 O CMOS 1V8 I2S2 Digital Audio Output Runtime
S52 HDA_SDI / I2S2_SDIN Unconnected - I2S0 I CMOS 1V8 I2S2 Digital Audio Input Runtime
S53 HDA_CK / I2S2_CK Unconnected - I2S0 I/O CMOS 1V8 I2S2 Digital Audio Clock Runtime Module Output if CPU acts in Master Mode Module Input if CPU acts in Slave Mode
S54 SATA_ACT# SATA1_ACT AJ28 SATA O OD CMOS 3V3 SATA Activity Indicator Runtime Shall be able to sink 24mA or more Carrier LED current
S55 USB5_EN_OC# Unconnected - USB5 I/O OD CMOS 3V3 USB Over-Current Sense for Port 5 Standby Pulled low by Module OD driver to disable USB5 power. Pulled low by Carrier OD driver to indicate overcurrent situation.
S56 ESPI_IO_2 / QSPI_IO_2 Unconnected - QSPI I/O CMOS 1V8 QSPI Data input / output Standby
S57 ESPI_IO_3 / QSPI_IO_3 Unconnected - QSPI I/O CMOS 1V8 QSPI Data input / output Standby
S58 ESPI_RESET# Unconnected - eSPI O CMOS 1V8 ESPI Reset Standby
S59 USB5+ NC - USB5 I/O USB USB USB Differential Data Pairs for Port 5 Standby
S60 USB5- NC - USB5 I/O USB USB USB Differential Data Pairs for Port 5 Standby
S61 GND GND PWR GND
S62 USB3_SSTX+ USB3_OTG0_SS.D_TX._P AP14 USB3 O USB SS USB SS Transmit Signal Differential Pairs for
SuperSpeed on Port 3 		Standby DC blocking capacitors 100nF shall be placed on the Module
S63 USB3_SSTX- USB3_OTG0_SS.D_TX._N AN14 USB3 O USB SS USB SS Transmit Signal Differential Pairs for
SuperSpeed on Port 3 		Standby DC blocking capacitors 100nF shall be placed on the Module
S64 GND GND PWR GND
S65 USB3_SSRX+ USB3_OTG0_SS.D_RX._P AN13 USB3 I USB SS USB SS Receive Signal Differential Pairs for
SuperSpeed on Port 3 		Standby
S66 USB3_SSRX- USB3_OTG0_SS.D_RX._N AP13 USB3 I USB SS USB SS Receive Signal Differential Pairs for
SuperSpeed on Port 3 		Standby
S67 GND GND PWR GND
S68 USB3+ OTG_0_D_P AL12 USB3 I/O USB USB USB Differential Data Pairs for Port 3 Standby
S69 USB3- OTG_0_D_N AM12 USB3 I/O USB USB USB Differential Data Pairs for Port 3 Standby
S70 GND GND PWR GND
S71 USB2_SSTX+ USB3_OTG1_SS.D_TX._P AP9 USB2 O USB SS USB SS Transmit Signal Differential Pairs for SuperSpeed on Port 2 Standby DC blocking capacitors 100nF shall be placed on the Module
S72 USB2_SSTX- USB3_OTG1_SS.D_TX._N AN9 USB2 O USB SS USB SS Transmit Signal Differential Pairs for SuperSpeed on Port 2 Standby DC blocking capacitors 100nF shall be placed on the Module
S73 GND GND PWR GND
S74 USB2_SSRX+ USB3_OTG1_SS.D_RX._P AN8 USB2 I USB SS USB SS Receive Signal Differential Pairs for
SuperSpeed on Port 2 		Standby
S75 USB2_SSRX- USB3_OTG1_SS.D_RX._N AP8 USB2 I USB SS USB SS Receive Signal Differential Pairs for
SuperSpeed on Port 2 		Standby
S76 PCIE_B_RST# PCIE_B_PERST AK27 PCIEB O CMOS 3V3 PCIe Port B reset output Runtime
S77 PCIE_C_RST# PCIE_C_PERST AM29 PCIEC O CMOS 3V3 PCIe Port C reset output Runtime
S78 PCIE_C_RX+ / SERDES_1_RX+ PCIE_C_RX_P B32 PCIEC I PCIE Differential PCIe link C receive data pair Runtime
S79 PCIE_C_RX- / SERDES_1_RX- PCIE_C_RX_N A32 PCIEC I PCIE Differential PCIe link C receive data pair Runtime
S80 GND GND PWR GND
S81 PCIE_C_TX+ / SERDES_1_TX+ PCIE_C_TX_P B30 PCIEC O PCIE Differential PCIe link C transmit data pair Runtime Series AC coupled on Module 75-265 nF depending on PCIe generation
S82 PCIE_C_TX- / SERDES_1_TX- PCIE_C_TX_N A30 PCIEC O PCIE Differential PCIe link C transmit data pair Runtime Series AC coupled on Module 75-265 nF depending on PCIe generation
S83 GND GND PWR GND
S84 PCIE_B_REFCK+ PCIE3_B_REFCLK._P - PCIEB O PCIE Differential PCIe Link B reference clock output Runtime D1.18
S85 PCIE_B_REFCK- PCIE3_B_REFCLK._N - PCIEB O PCIE Differential PCIe Link B reference clock output Runtime D1.19
S86 GND GND PWR GND
S87 PCIE_B_RX+ PCIE_B_RX_P F32 PCIEB I PCIE Differential PCIe link B receive data pair Runtime
S88 PCIE_B_RX- PCIE_B_RX_N F33 PCIEB I PCIE Differential PCIe link B receive data pair Runtime
S89 GND GND PWR GND
S90 PCIE_B_TX+ PCIE_B_TX_P C33 PCIEB O PCIE Differential PCIe link B transmit data pair Runtime Series AC coupled on Module 75-265 nF depending on PCIe generation
S91 PCIE_B_TX- PCIE_B_TX_N C34 PCIEB O PCIE Differential PCIe link B transmit data pair Runtime Series AC coupled on Module 75-265 nF depending on PCIe generation
S92 GND GND PWR GND
S93 DP0_LANE0+ DPORT1.D0._P AN4 DP0++ O DP Primary DP Port Differential Pair Data Lines Runtime
S94 DP0_LANE0- DPORT1.D0._N AP4 DP0++ O DP Primary DP Port Differential Pair Data Lines Runtime
S95 DP0_AUX_SEL Unconnected - DP0++ I CMOS Auxiliary Selection Runtime
S96 DP0_LANE1+ DPORT1.D1._P AM5 DP0++ O DP Primary DP Port Differential Pair Data Lines Runtime
S97 DP0_LANE1- DPORT1.D1._N AN5 DP0++ O DP Primary DP Port Differential Pair Data Lines Runtime
S98 DP0_HPD DP0_HPD P30 DP0++ I CMOS DP Hot Plug Detect Input Runtime
S99 DP0_LANE2+ DPORT1.D2._P AN6 DP0++ O DP Primary DP Port Differential Pair Data Lines Runtime
S100 DP0_LANE2- DPORT1.D2._N AP6 DP0++ O DP Primary DP Port Differential Pair Data Lines Runtime
S101 GND GND PWR GND
S102 DP0_LANE3+ DPORT1.D3._P AM3 DP0++ O DP Primary DP Port Differential Pair Data Lines Runtime
S103 DP0_LANE3- DPORT1.D3._N AN3 DP0++ O DP Primary DP Port Differential Pair Data Lines Runtime
S104 USB3_OTG_ID OTG_0_ID AL14 USB3 I CMOS Input Pin to Announce OTG Device Insertion on USB 3.2 Port Standby
S105 DP0_AUX+ DPORT1.CLK._P AN2 DP0++ I/O DP Primary DP Port Bidirectional Channel used for Link
Management and Device Control 		Runtime AC coupled on module. if DP0_AUX_SEL=1 (HDMI) - DC coupled
S106 DP0_AUX- DPORT1.CLK._N AP2 DP0++ I/O DP Primary DP Port Bidirectional Channel used for Link
Management and Device Control 		Runtime AC coupled on module. if DP0_AUX_SEL=1 (HDMI) - DC coupled
S107 LCD1_BKLT_EN LCD1_BKLT_EN - eDP1 O CMOS Secondary LVDS Channel Backlight
Enable 		Runtime D11.5
S108 LVDS1_CK+ / eDP1_AUX+ / DSI1_CLK+ LVDS_B.CLK._P - DSI1 O D-PHY Secondary DSI Panel Differential Pair Clock Lines Runtime U7.B6
S109 LVDS1_CK- / eDP1_AUX- / DSI1_CLK- LVDS_B.CLK._N - DSI1 O D-PHY Secondary DSI Panel Differential Pair Clock Lines Runtime U7.A6
S110 GND GND PWR GND
S111 LVDS1_0+ / eDP1_TX0+ / DSI1_D0+ LVDS_B.D0._P - DSI1 O D-PHY Secondary DSI Panel Differential Pair Data Lines Runtime U7.B3
S112 LVDS1_0- / eDP1_TX0- / DSI1_D0- LVDS_B.D0._N - DSI1 O D-PHY Secondary DSI Panel Differential Pair Data Lines Runtime U7.A3
S113 eDP1_HPD / DSI1_TE Unconnected - DSI1 I CMOS 1V8 Detection of Hot Plug / Unplug of Secondary eDP Display and
Notification of the Link Layer 		Runtime
S114 LVDS1_1+ / eDP1_TX1+ / DSI1_D1+ LVDS_B.D1._P - DSI1 O D-PHY Secondary DSI Panel Differential Pair Data Lines Runtime U7.B4
S115 LVDS1_1- / eDP1_TX1- / DSI1_D1- LVDS_B.D1._N - DSI1 O D-PHY Secondary DSI Panel Differential Pair Data Lines Runtime U7.A4
S116 LCD1_VDD_EN LCD1_VDD_EN - DSI1 O CMOS 1V8 Secondary Panel Power Enable Runtime D11.7
S117 LVDS1_2+ / eDP1_TX2+ / DSI1_D2+ LVDS_B.D2._P - DSI1 O D-PHY Secondary DSI Panel Differential Pair Data Lines Runtime U7.B5
S118 LVDS1_2- / eDP1_TX2- / DSI1_D2- LVDS_B.D2._N - DSI1 O D-PHY Secondary DSI Panel Differential Pair Data Lines Runtime U7.A5
S119 GND GND PWR GND
S120 LVDS1_3+ / eDP1_TX3+ / DSI1_D3+ LVDS_B.D3._P - DSI1 O D-PHY Secondary DSI Panel Differential Pair Data Lines Runtime U7.B7
S121 LVDS1_3- / eDP1_TX3- / DSI1_D3- LVDS_B.D3._N - DSI1 O D-PHY Secondary DSI Panel Differential Pair Data Lines Runtime U7.A7
S122 LCD1_BKLT_PWM PWM0_M1 F28 DSI1 O CMOS 1V8 Secondary Panel Brightness Control Runtime
S123 GPIO13 GPIO13 G26 GPIO I/O CMOS 1V8 GPIO Pin 13 Preferred Output Runtime
S124 GND GND PWR GND
S125 LVDS0_0+ / eDP0_TX0+ / DSI0_D0+ LVDS_A.D0._P - DSI0 O D-PHY Primary DSI Panel Differential Pair Data Lines Runtime U7.C8
S126 LVDS0_0- / eDP0_TX0- / DSI0_D0- LVDS_A.D0._N - DSI0 O D-PHY Primary DSI Panel Differential Pair Data Lines Runtime U7.C9
S127 LCD0_BKLT_EN LCD0_BKLT_EN - DSI0 O CMOS 1V8 Primary Panel Backlight Enable Runtime D11.4
S128 LVDS0_1+ / eDP0_TX1+ / DSI0_D1+ LVDS_A.D1._P - DSI0 O D-PHY Primary DSI Panel Differential Pair Data Lines Runtime U7.D8
S129 LVDS0_1- / eDP0_TX1- / DSI0_D1- LVDS_A.D1._N - DSI0 O D-PHY Primary DSI Panel Differential Pair Data Lines Runtime U7.D9
S130 GND GND PWR GND
S131 LVDS0_2+ / eDP0_TX2+ / DSI0_D2+ LVDS_A.D2._P - DSI0 O D-PHY Primary DSI Panel Differential Pair Data Lines Runtime U7.E8
S132 LVDS0_2- / eDP0_TX2- / DSI0_D2- LVDS_A.D2._N - DSI0 O D-PHY Primary DSI Panel Differential Pair Data Lines Runtime U7.E9
S133 LCD0_VDD_EN LCD0_VDD_EN - DSI0 O CMOS 1V8 Primary Panel Power Enable Runtime D11.6
S134 LVDS0_CK+ / eDP0_AUX+ / DSI0_CLK+ LVDS_A.CLK._P - DSI0 O D-PHY Primary DSI Panel Differential Pair Clock Lines Runtime U7.F8
S135 LVDS0_CK- / eDP0_AUX- / DSI0_CLK- LVDS_A.CLK._N - DSI0 O D-PHY Primary DSI Panel Differential Pair Clock Lines Runtime U7F9
S136 GND GND PWR GND
S137 LVDS0_3+ / eDP0_TX3+ / DSI0_D3+ LVDS_A.D3._P - DSI0 O D-PHY Primary DSI Panel Differential Pair Data Lines Runtime U7.G8
S138 LVDS0_3- / eDP0_TX3- / DSI0_D3- LVDS_A.D3._N - DSI0 O D-PHY Primary DSI Panel Differential Pair Data Lines Runtime U7.G9
S139 I2C_LCD_CK I2C_LCD.SCL AJ25 DSI I\O OD CMOS I2C clock to read LCD display EDID EEPROMs Runtime
S140 I2C_LCD_DAT I2C_LCD.SDA AK24 DSI I\O OD CMOS DDC Data Line Used for Flat Panel Detection and Control Runtime
S141 LCD0_BKLT_PWM PWM4_M1 AF34 DSI0 O CMOS Primary Panel Brightness Control Runtime
S142 GPIO12 GPIO12 B25 GPIO I/O CMOS GPIO Pin 12 Preferred Output Runtime
S143 GND GND PWR GND
S144 eDP0_HPD / DSI0_TE Unconnected - DSI0 I CMOS 1V8 Primary DSI Panel Tearing Effect Signal Runtime
S145 WDT_TIME_OUT# WDT_TIME_OUT# K29 WATCHDOG O CMOS 1V8 Watch-Dog-Timer Output, low active Runtime
S146 PCIE_WAKE# PCIE_WAKE_N AK27, AL28,
AL30, AM27 		PCIE I OD CMOS 3V3 PCIe wake up interrupt to host – common to PCIe links A, B, C, D Standby
S147 VDD_RTC VBAT - PWR RTC 2V…3.25V D7.3
S148 LID# Unconnected - MANAGEMENT I OD CMOS 1V8…5V Lid open/close indication to Module.
Low indicates lid closure (which system may use to initiate a sleep state). Carrier to float the line in inactive state. Active low, level sensitive. Should be de-bounced on the Module. 		Standby
S149 SLEEP# Unconnected - MANAGEMENT I OD CMOS 1V8…5V Sleep indicator from Carrier Board. May be sourced from user Sleep button or Carrier logic. Carrier to float the line in in-active state. Active low, level sensitive. Should be debounced on the Module. Standby
S150 VIN_PWR_BAD# VIN_GOOD - MANAGEMENT I OD CMOS VDD_IN Power bad indication from Carrier Board. Module and Carrier power supplies (other than Module and Carrier power supervisory circuits) shall not be enabled while this signal is held low by the Carrier. U6.1
S151 CHARGING# Unconnected - MANAGEMENT I OD CMOS 1V8…5V Held low by Carrier during battery charging. Carrier to float the line when charge is complete. Standby/Sleep
S152 CHARGER_PRSNT# Unconnected - MANAGEMENT I OD CMOS 1V8…5V Held low by Carrier if DC input for battery charger is present Standby/Sleep
S153 CARRIER_STBY# CARRIER_STBY# - MANAGEMENT O CMOS 1V8 The Module shall drive this signal low when the system is in a standby power state. Standby U2.39, D5.7 (100R)
S154 CARRIER_PWR_ON CARRIER_PWR_ON - MANAGEMENT O CMOS 1V8 Carrier Board circuits (apart from power management and power path
circuits) should not be powered up until the Module asserts the
CARRIER_PWR_ON signal. 		Standby U2.39, D5.7 (100R)
S155 FORCE_RECOV# FORCE_RECOV AM16 BOOT I OD CMOS 1V8 PU 100K Low on this pin allows nonprotected segments of Module boot device to be rewritten / restored from an external USB Host on Module USB0. The Module USB0 operates in Client Mode when in the Force Recovery function is invoked. Pulled high on the Module.
For SOCs that do not implement a USB based Force Recovery functions, then a low on the Module FORCE_RECOV# pin may invoke the SOC native Force Recovery mode – such as over a
Serial Port.
For x86 systems this signal may be used to load BIOS defaults.
Pulled up on Module. Driven by OD part on Carrier. 		Standby
S156 BATLOW# NC - MANAGEMENT I OD CMOS 1V8…5V Battery low indication to Module.
Carrier to float the line in inactive state. 		Standby/Sleep
S157 TEST# NC - MANAGEMENT I OD CMOS 1V8…5V Held Low by Carrier to Invoke Module
Vendor Specific Test Functions 		Standby/Sleep
S158 GND GND PWR GND
