NMS-SM-RK3568 v1 ds-ru

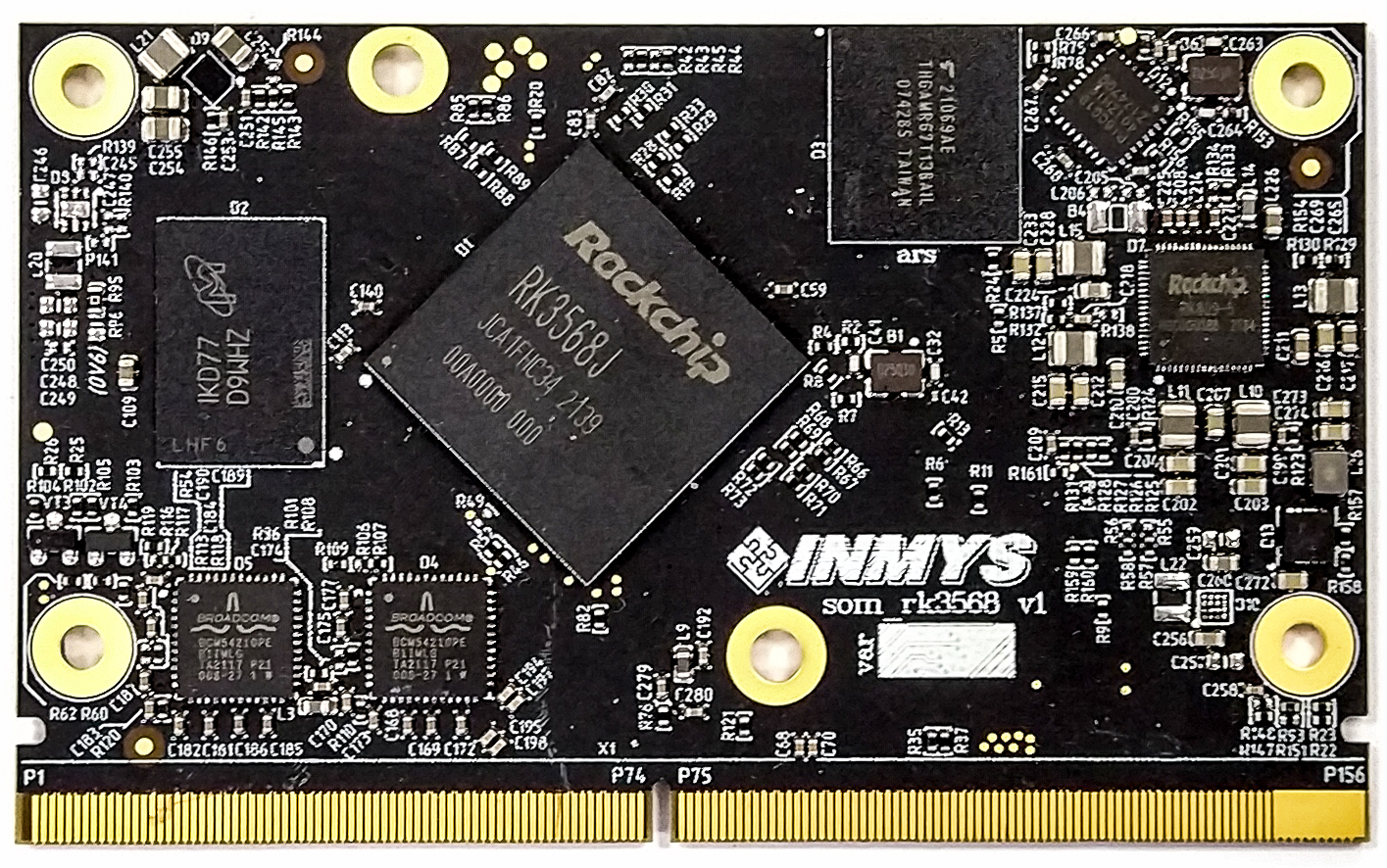

Процессорный модуль NMS-SM-RK3568 выполнен на основе процессора производства Rockchip RK3568, который оснащен двухъядерным графическим процессором и высокопроизводительным NPU, поддерживающим до 8 ГБ ОЗУ.

Имея различные интерфейсы ввода и вывода видео, он подходит для таких сценариев, как интеллектуальный сетевой видеорегистратор, облачный терминал, шлюз IoT и промышленное управление.


Краткое описание возможностей

Основные технические характеристики
Внешние разъемы Краевой разъём в соответствии со SMARC, по стандарту (2.0\2.1)
Процессор RK3568
Ядра:4х-ядерный 64х-битный Cortex-A55, 22нм техпроцесс, частота до 2.0ГГц
Графический ускоритель: ARM G52 2EE, поддержка OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1
Видеоускоритель: аппаратное декодирование 4K 60к/с H.265/H.264/VP9, аппаратное кодирование 1080P 100к/с H.265/H.264, 8M ISP, HDR
Нейросопроцессор: 0.8Tops@INT8, интегрированнный высокопроизводительный AI ускоритель RKNN NPU, поддержка Caffe/TensorFlow/TFLite/ONNX/PyTorch/Keras/Darknet
ОЗУ Память LPDDR4 2 ГБайт (512Mbit x 32) (MT53D512M32D2DS-053WT:D)
Флэш-память Память eMMC 16 ГБайт (THGAMRG7T13BAIL)
ИС управления питанием PMIC (RK809-5)
Прочие компоненты Часы реального времени RTC (PCF8523TK)
2x Гигабит ETH PHY (BCM54210PEB1IMLG)
PCIe CLK GEN 25 MHz XTAL→4x 100MHz (PI6CG18401Z)
Переключатель SATA → USB3 1:2 (CBTL02043A )
Интерфейсы 2x USB 2.0
1x USB 3.0 OTG
1x USB 2.0 либо 1x USB 3.0 (USB3_ HOST1_SS замультиплексирован с SATA1)
1x PCIe 2.1
2x PCIe 3.0
2x CAN
3x UART + 1x отладочный UART
2x SPI
3x I2C
1x I2S
2x PWM
1x SATA (замультиплексирован с USB3_ HOST1_SS)
1x HDMI
1x eDP
1x MIPI DSI or LVDS
1x SDIO
2x ETH 1GB
20x GPIO
Напряжение питания +5 Вольт
Потребление TBD
Габаритные размеры 82×50 мм

Файлы для загрузки

Файлы для загрузки
Название документа Краткое описание Версия Дата
nms-sm-evm_v1_prod_sch.pdf Схема электрическая принципиальная NMS-SM-EVM v1 v1 2022.09.15
nms-sm-rk3568_v1_prod.step STEP-файл модуля NMS-SM-RK3568 v1 v1 2022.10.07


Структурная схема модуля

Структурная схема модуля



Механические характеристики

Размер платы : 82 х 50 мм.
Печатная плата состоит из 8 слоев, часть из которых являются заземляющими для подавления помех.

Габаритные размеры



Основные аппаратные компоненты

Расположение компонентов на плате

Вид сверху

Расположение компонентов на плате. Вид сверху


Наименование компонентов на плате на верхней стороне
Позиционное
обозначение 		P/N Описание
D1 RK3568 CPU
D2 MT53D512M32D2DS-053WT:D LPDDR4
D3 THGAMRG7T13BAIL EMMC
D4, D5 BCM54210PEB1IMLG ETH PHY
D7 RK809-5 PMIC
D8 PAM2305CGFADJ DCDC BUCK
D9 FAN53200UC35X DCDC BUCK
D10 FAN48623UC50X DCDC BOOST
D12 PI6CG18401ZHIEX PCIe CLK GEN
D13 NCP1597BMNTWG DCDC BUCK

Вид снизу

Расположение компонентов на плате. Вид снизу


Наименование компонентов на плате на нижней стороне
Позиционное
обозначение 		P/N Описание
D6 CBTL02043ABQ.115 SATA →USB3 1:2 SW
D11 PCF8523TK/1.118 RTC
D14, D15 NLSV2T244MUTAG LOGIC BUF

Процессор

На рисунке 5 показаны функциональные модули в процессорной системе RK3568.

Функциональные модули Rockchip RK3568


Интерфейсы

I2C

На плате NMS-SM-RK3568 доступно три внешних интерфейса I2C и два внутренних для взаимосвязи процессора и периферийных устройств.

I2C интерфейс


Сопоставление адресов I2C0
Устройство Адрес
PMIC 0x00110000
DCDC CONV 0x01100000
Сопоставление адресов I2C5
Устройство Адрес
RTC 0x01101000
CLK GEN 0x01100001

Расположение разъемов на плате

Вид сверху

Расположение разъемов на плате. Вид сверху



Вид снизу

На нижней стороне платы разъемы отсутствуют.

Распиновка разъемов

Распиновка разъема X1 согласно SMARC

Pin # Name STANDART Signals_SM_RK3568 CPU PIN CPU Function
IO description
Func1
Func2
Func3
Func4
Func5
Func6 		Group I/O Type I/O Level PU / PD SM_RK3568 Description Power Domain Comments
P1 SMB_ALERT# NC - MANAGEMENT I OD CMOS 1V8…5V SMBus Alert# (Interrupt) Signal Standby/Sleep
P2 GND GND PWR GND
P3 CSI1_CK+ MIPI_CSI.CLK0._P AG10 MIPI_CSI_RX_CLK 0P CSI1 I D-PHY CSI1 differential clock input (point to point) Runtime
P4 CSI1_CK- MIPI_CSI.CLK0._N AH10 MIPI_CSI_RX_CLK 0N CSI1 I D-PHY CSI1 differential clock input (point to point) Runtime
P5 GBE1_SDP ETH1.SDP - GBE1 I/O CMOS 3V3 IEEE 1588 Trigger Signal for Hardware Implementation of PTP (Precision Time Protocol) Standby
P6 GBE0_SDP ETH0.SDP - GBE0 I/O CMOS 3V3 IEEE 1588 Trigger Signal for Hardware Implementation of PTP (Precision Time Protocol) Standby
P7 CSI1_RX0+ MIPI_CSI.0._P AG12 MIPI_CSI_RX_D0P CSI1 I D-PHY
/ I M-PHY 		CSI1 differential input (point to point) Runtime
P8 CSI1_RX0- MIPI_CSI.0._N AH12 MIPI_CSI_RX_D0N CSI1 I D-PHY
/ I M-PHY 		CSI1 differential input (point to point) Runtime
P9 GND GND PWR GND
P10 CSI1_RX1+ MIPI_CSI.1._P AG11 MIPI_CSI_RX_D1P CSI1 I D-PHY
/ I M-PHY 		CSI1 differential input (point to point) Runtime
P11 CSI1_RX1- MIPI_CSI.1._N AH11 MIPI_CSI_RX_D1N CSI1 I D-PHY
/ I M-PHY 		CSI1 differential input (point to point) Runtime
P12 GND GND PWR GND
P13 CSI1_RX2+ NC - CSI1 I D-PHY
/ I M-PHY 		CSI1 differential input (point to point) Runtime
P14 CSI1_RX2- NC - CSI1 I D-PHY
/ I M-PHY 		CSI1 differential input (point to point) Runtime
P15 GND GND PWR GND
P16 CSI1_RX3+ NC - CSI1 I D-PHY
/ I M-PHY 		CSI1 differential input (point to point) Runtime
P17 CSI1_RX3- NC - CSI1 I D-PHY
/ I M-PHY 		CSI1 differential input (point to point) Runtime
P18 GND GND PWR GND
P19 GBE0_MDI3- ETH0.MDI3._N - GBE0 I/O GBE MDI Differential Pair Signals for External Transformer Standby
P20 GBE0_MDI3+ ETH0.MDI3._P - GBE0 I/O GBE MDI Differential Pair Signals for External Transformer Standby
P21 GBE0_LINK100# ETH0.LED_100# - GBE0 O OD CMOS 3V3 Link Speed Indication LED for GBE0 100Mbps Standby Shall be able to sink 24mA or more Carrier LED current.
P22 GBE0_LINK1000# ETH0.LED_1000# - GBE0 O OD CMOS 3V3 Link Speed Indication LED for GBE0 1000Mbps Standby Shall be able to sink 24mA or more Carrier LED current.
P23 GBE0_MDI2- ETH0.MDI2._N - GBE0 I/O GBE MDI Differential Pair Signals for External Transformer Standby
P24 GBE0_MDI2+ ETH0.MDI2._P - GBE0 I/O GBE MDI Differential Pair Signals for External Transformer Standby
P25 GBE0_LINK_ACT# ETH0.LED_ACT# - GBE0 O OD CMOS 3V3 Link / Activity Indication LED Driven Low on Link (10, 100 or 1000 Mbps) Blinks on Activity Standby Shall be able to sink 24mA or more Carrier LED current.
P26 GBE0_MDI1- ETH0.MDI1._N - GBE0 I/O GBE MDI Differential Pair Signals for External Transformer Standby
P27 GBE0_MDI1+ ETH0.MDI1._P - GBE0 I/O GBE MDI Differential Pair Signals for External Transformer Standby
P28 GBE0_CTREF NC - GBE0 Analog 0…3V3 Center-Tap Reference Voltage for Carrier Board Ethernet Magnetic (if required by the Module GBE PHY) Standby
P29 GBE0_MDI0- ETH0.MDI0._N - GBE0 I/O GBE MDI Differential Pair Signals for External Transformer Standby
P30 GBE0_MDI0+ ETH0.MDI0._P - GBE0 I/O GBE MDI Differential Pair Signals for External Transformer Standby
P31 SPI0_CS1# SPI0.CS1 AD12 MIPI_DSI_TX1_D3P SPI0 O CMOS 1V8 SPI0 Master Chip Select 1 Standby
P32 GND GND PWR GND
P33 SDIO_WP SDIO_WP AF25 GPIO0_A5_d
SDMMC0_PWREN
SATA_MP_SWITCH
PCIE20_CLKREQn_M0 		SDIO I OD CMOS 1V8 or 3V3 PU 10K SDIO Write Protect. This signal denotes the state of the write-protect tab on SD cards. Runtime
P34 SDIO_CMD SDMMC0.CMD H27 GPIO2_A1_u
SDMMC0_CMD
PWM10_M1
UART5_RX_M0
CAN0_TX_M1 		SDIO I/O CMOS 1V8 or 3V3 SDIO Command/Response. This signal is used for card initialization and for command transfers. During initialization mode this signal is open drain. During command transfer this signal is in push-pull mode. Runtime
P35 SDIO_CD# SDIO_CD# Y22 GPIO0_A4_u
SDMMC0_DET
SATA_CP_DET
PCIE30X1_CLKREQn_M0 		SDIO I OD CMOS 1V8 or 3V3 PU 10K SDIO Card Detect. This signal indicates when a SDIO/MMC card is present. Runtime
P36 SDIO_CK SDMMC0.CLK H28 GPIO2_A2_d
SDMMC0_CLK
TEST_CLKOUT
UART5_TX_M0
CAN0_RX_M1 		SDIO O CMOS 1V8 or 3V3 SDIO Clock. With each cycle of this signal a one-bit transfer on the
command and each data line occurs. 		Runtime SDIO controller will detect SD Cards voltage level (1.8V for UHS-I and 3.3V for standard) and adjust its I/O voltage level accordingly
P37 SDIO_PWR_EN SDIO_PWR_EN AE24 SDIO O CMOS 3V3 SDIO Power Enable. This signal is used to enable the power being supplied to a SD/MMC card device. Runtime Should be driven low in Standby Mode by the Module
P38 GND GND PWR GND
P39 SDIO_D0 SDMMC0.DATA.0 J25 SDIO I/O CMOS 1V8 or 3V3 SDIO Data lines. These signals operate in push-pull mode. Runtime
P40 SDIO_D1 SDMMC0.DATA.1 J24 SDIO I/O CMOS 1V8 or 3V3 SDIO Data lines. These signals operate in push-pull mode. Runtime
P41 SDIO_D2 SDMMC0.DATA.2 H26 GPIO1_D7_u
SDMMC0_D2
ARMJTAG_TCK
UART5_CTSn_M0 		SDIO I/O CMOS 1V8 or 3V3 SDIO Data lines. These signals operate in push-pull mode. Runtime
P42 SDIO_D3 SDMMC0.DATA.3 J23 SDIO I/O CMOS 1V8 or 3V3 SDIO Data lines. These signals operate in push-pull mode. Runtime
P43 SPI0_CS0# SPI0.CS0 AD20 GPIO0_C6_d
PWM7_IR
SPI0_CS0_M0
PCIE30X2_PERSTn_M0 		SPI0 O CMOS 1V8 SPI0 Master Chip Select 0 Standby This signal can be used to select Carrier SPI as boot device
P44 SPI0_CK SPI0.SCK AC22 GPIO0_B5_u
I2C2_SCL_M0
SPI0_CLK_M0
PCIE20_WAKEn_M0
PWM1_M1 		SPI0 O CMOS 1V8 SPI0 Clock Standby
P45 SPI0_DIN SPI0.MISO AC21 GPIO0_C5_d
PWM6
SPI0_MISO_M0
PCIE30X2_WAKEn_M0 		SPI0 I CMOS 1V8 SPI0 Master input / Slave output Standby also referred to as MISO
P46 SPI0_DO SPI0.MOSI AA20 GPIO0_B6_u
I2C2_SDA_M0
SPI0_MOSI_M0
PCIE20_PERSTn_M0
PWM2_M1 		SPI0 O CMOS 1V8 SPI0 Master output / Slave input Standby also referred to as MOSI
P47 GND GND PWR GND
P48 SATA_TX+ SATA1.D_TX._P - SATA O SATA Serial ATA Channel 0
Transmit Output Differential Pair 		Runtime Series AC coupled on 10 nF Module
P49 SATA_TX- SATA1.D_TX._N - SATA O SATA Serial ATA Channel 0
Transmit Output Differential Pair 		Runtime Series AC coupled on 10 nF Module
P50 GND GND PWR GND
P51 SATA_RX+ SATA1.D_RX._P - SATA I SATA Serial ATA Channel 0
Receive Input Differential Pair 		Runtime Series AC coupled on 10 nF Module
P52 SATA_RX- SATA1.D_RX._N - SATA I SATA Serial ATA Channel 0
Receive Input Differential Pair 		Runtime Series AC coupled on 10 nF Module
P53 GND GND PWR GND
P54 ESPI_CS0# / SPI1_CS0# / QSPI_CS0# SPI1.CS0 AE8 GPIO4_C6_d
PWM13_M1
SPI3_CS0_M1
SATA0_ACT_LED
UART9_RX_M1
I2S3_SDI_M1 		SPI1 O CMOS 1V8 SPI1 Master Chip Select 0 Standby
P55 ESPI_CS1# / SPI1_CS1# / QSPI_CS1# SPI1.CS1 AH6 GPIO4_D1_u
HDMITX_CEC_M0
SPI3_CS1_M1 		SPI1 O CMOS 1V8 SPI1 Master Chip Select 1 Standby
P56 ESPI_CK / SPI1_CK / QSPI_CK SPI1.SCK AF8 GPIO4_C2_d
PWM14_M1
SPI3_CLK_M1
CAN1_RX_M1
PCIE30X2_CLKREQn_M2
I2S3_MCLK_M1 		SPI1 O CMOS 1V8 SPI1 Clock Standby
P57 ESPI_IO_1 / SPI1_DIN / QSPI_IO_1 SPI1.MISO AD8 GPIO4_C5_d
PWM12_M1
SPI3_MISO_M1
SATA1_ACT_LED
UART9_TX_M1
I2S3_SDO_M1 		SPI1 I CMOS 1V8 SPI1 Master input / Slave output Standby also referred to as MISO
P58 ESPI_IO_0 / SPI1_DO / QSPI_IO_0 SPI1.MOSI AA11 GPIO4_C3_d
PWM15_IR_M1
SPI3_MOSI_M1
CAN1_TX_M1
PCIE30X2_WAKEn_ M2
I2S3_SCLK_M1 		SPI1 O CMOS 1V8 SPI1 Master output / Slave input Standby also referred to as MOSI
P59 GND GND PWR GND
P60 USB0+ USB2_HOST2._P R2 USB2_HOST2_DP USB0 I/O USB USB USB Differential Data Pairs for Port 0 Standby
P61 USB0- USB2_HOST2._N R1 USB2_HOST2_DM USB0 I/O USB USB USB Differential Data Pairs for Port 0 Standby
P62 USB0_EN_OC# USB2_HOST2_EN_OC# AE5 GPIO3_A2_d
LCDC_D9
VOP_BT1120_D1
GMAC1_TXD2_M0
I2S3_MCLK_M0
SDMMC2_D1_M1 		USB0 I/O OD CMOS 3V3 PU 10K USB Over-Current Sense for Port 0 Standby Pulled low by Module OD driver to disable USB0 power. Pulled low by
Carrier OD driver to indicate overcurrent situation.
P63 USB0_VBUS_DET NC - USB0 I USB VBUS 5V USB VBUS 5V USB Port 0 Host Power Detection Standby
P64 USB0_OTG_ID NC - USB0 Input Pin to Announce OTG Device
Insertion on USB 2.0 Port 		Standby
P65 USB1+ USB2_HOST3._P T2 USB2_HOST3_DP USB1 I/O USB USB USB Differential Data Pairs for Port 1 Standby
P66 USB1- USB2_HOST3._N T1 USB2_HOST3_DM USB1 I/O USB USB USB Differential Data Pairs for Port 1 Standby
P67 USB1_EN_OC# USB2_HOST3_EN_OC# AG4 GPIO3_A3_d
LCDC_D10
VOP_BT1120_D2
GMAC1_TXD3_M0
I2S3_SCLK_M0
SDMMC2_D2_M1 		USB1 I/O OD CMOS 3V3 PU 10K USB Over-Current Sense for Port 1 Standby Pulled low by Module OD driver to disable USB1 power. Pulled low by
Carrier OD driver to indicate overcurrent situation.
P68 GND GND PWR GND
P69 USB2+ USB3_HOST1._P P24 USB3_HOST1_DP USB2 I/O USB USB USB Differential Data Pairs for Port 2 Standby
P70 USB2- USB3_HOST1._N P25 USB3_HOST1_DM USB2 I/O USB USB USB Differential Data Pairs for Port 2 Standby
P71 USB2_EN_OC# USB3_HOST1_EN_OC# AD2 GPIO3_C0_d
LCDC_D23
PWM13_M0
GMAC1_MCLKINOUT_M0
UART3_RX_M1
PDM_SDI3_M2 		USB2 I/O OD CMOS 3V3 PU 10K USB Over-Current Sense for Port 2 Standby Pulled low by Module OD driver to disable USB2 power. Pulled low by
Carrier OD driver to indicate overcurrent situation.
P72 RSVD rsvd -
P73 RSVD rsvd -
P74 USB3_EN_OC# USB3_OTG0_EN_OC# AH3 GPIO3_A5_d
LCDC_D12
VOP_BT1120_D4
GMAC1_RXD3_M0
I2S3_SDO_M0
SDMMC2_CMD_M1 		USB3 I/O OD CMOS 3V3 PU 10K USB Over-Current Sense for Port 3 Standby Pulled low by Module OD driver to disable USB3 power. Pulled low by
Carrier OD driver to indicate overcurrent situation.
P75 PCIE_A_RST# PCIE_A_RST# AB8 GPIO3_A1_d
LCDC_D8
VOP_BT1120_D0
SPI1_CS0_M1
PCIE30X1_PERSTn_M1
SDMMC2_D0_M1 		PCIEA O CMOS 3V3 PCIe Port A reset output Runtime
P76 USB4_EN_OC# NC - USB4 I/O OD CMOS 3V3 USB Over-Current Sense for Port 4 Standby Pulled low by Module OD driver to disable USB4 power. Pulled low by
Carrier OD driver to indicate overcurrent situation.
P77 PCIE_B_CKREQ# PCIE_B_CKREQ# AF5 GPIO2_D4_d
LCDC_D4
VOP_BT656_D4_M0
SPI2_CS1_M1
PCIE30X2_CLKREQn_M1
I2S1_SDI1_M2 		PCIEB IO OD CMOS 3V3 PU 10K PCIe Port B clock request Runtime
P78 PCIE_A_CKREQ# PCIE_A_CKREQ# AC8 GPIO2_D2_d
LCDC_D2
VOP_BT656_D2_M0
SPI0_CS0_M1
PCIE30X1_CLKREQn_M1
I2S1_LRCK_TX_M2 		PCIEA IO OD CMOS 3V3 PU 10K PCIe Port A clock request Runtime
P79 GND GND PWR GND
P80 PCIE_C_REFCK+ PCIE20_REFCLK._P V24 PCIE20_REFCLKP PCIEC O PCIE Differential PCIe Link C reference clock output Runtime
P81 PCIE_C_REFCK- PCIE20_REFCLK._N V25 PCIE20_REFCLKN PCIEC O PCIE Differential PCIe Link C reference clock output Runtime
P82 GND GND PWR GND
P83 PCIE_A_REFCK+ PCIE30_REFCLKA._P - PCIEA O PCIE Differential PCIe Link A reference clock output Runtime
P84 PCIE_A_REFCK- PCIE30_REFCLKA._N - PCIEA O PCIE Differential PCIe Link A reference clock output Runtime
P85 GND GND PWR GND
P86 PCIE_A_RX+ PCIE30_L0.D_RX._P AC28 PCIE30_RX0P PCIEA I PCIE Differential PCIe link A receive data pair Runtime
P87 PCIE_A_RX- PCIE30_L0.D_RX._N AC27 PCIE30_RX0N PCIEA I PCIE Differential PCIe link A receive data pair Runtime
P88 GND GND PWR GND
P89 PCIE_A_TX+ PCIE30_L0.D_TX._P AA28 PCIE30_TX0P PCIEA O PCIE Differential PCIe link A transmit data pair Runtime Series AC coupled on Module 75-265 nF depending on PCIe generation
P90 PCIE_A_TX- PCIE30_L0.D_TX._N AA27 PCIE30_TX0N PCIEA O PCIE Differential PCIe link A transmit data pair Runtime Series AC coupled on Module 75-265 nF depending on PCIe generation
P91 GND GND PWR GND
P92 HDMI_D2+ / DP1_LANE0+ HDMI_TX.D2._P AG22 HDMI_TX_D2P HDMI O TMDS HDMI HDMI Port, Differential Pair Data Lines Runtime
P93 HDMI_D2- / DP1_LANE0- HDMI_TX.D2._N AH22 HDMI_TX_D2N HDMI O TMDS HDMI HDMI Port, Differential Pair Data Lines Runtime
P94 GND GND PWR GND
P95 HDMI_D1+ / DP1_LANE1+ HDMI_TX.D1._P AG21 HDMI_TX_D1P HDMI O TMDS HDMI HDMI Port, Differential Pair Data Lines Runtime
P96 HDMI_D1- / DP1_LANE1- HDMI_TX.D1._N AH21 HDMI_TX_D1N HDMI O TMDS HDMI HDMI Port, Differential Pair Data Lines Runtime
P97 GND GND PWR GND
P98 HDMI_D0+ / DP1_LANE2+ HDMI_TX.D0._P AG20 HDMI_TX_D0P HDMI O TMDS HDMI HDMI Port, Differential Pair Data Lines Runtime
P99 HDMI_D0- / DP1_LANE2- HDMI_TX.D0._N AH20 HDMI_TX_D0N HDMI O TMDS HDMI HDMI Port, Differential Pair Data Lines Runtime
P100 GND GND PWR GND
P101 HDMI_CK+ / DP1_LANE3+ HDMI_TX.CK._P AH19 HDMI_TX_CLKP HDMI O TMDS HDMI HDMI Port, Differential Pair Clock Lines Runtime
P102 HDMI_CK- / DP1_LANE3- HDMI_TX.CK._N AG19 HDMI_TX_CLKN HDMI O TMDS HDMI HDMI Port, Differential Pair Clock Lines Runtime
P103 GND GND PWR GND
P104 HDMI_HPD / DP1_HPD HDMI_HPD AB18 HDMI_TX_HPDIN HDMI I CMOS 1V8 PD 1M HDMI Hot Plug Active High Detection Signal that Serves as an Interrupt Request Runtime
P105 HDMI_CTRL_CK / DP1_AUX+ HDMI_CTRL.SCL AG8 GPIO4_C7_u
HDMITX_SCL
I2C5_SCL_M1 		HDMI I/O OD CMOS 1V8 PU 100K I2C_CLK Line Dedicated to HDMI Runtime
P106 HDMI_CTRL_DAT / DP1_AUX- HDMI_CTRL.SDA AG7 GPIO4_D0_u
HDMITX_SDA
I2C5_SDA_M1 		HDMI I/O OD CMOS 1V8 PU 100K I2C_DAT Line Dedicated to HDMI Runtime
P107 DP1_AUX_SEL NC - DP1++_HDMI I CMOS 1V8 Strapping Signal to Enable
Either HDMI or DP Output 		Runtime 0 - DP
1 - HDMI
P108 GPIO0 / CAM0_PWR# GPIO.0 AA5 GPIO3_D5_d
CIF_D7
EBC_SDDO7
SDMMC2_PWREN_M0
I2S1_SDI3_M1
VOP_BT656_D7_M1 		GPIO I/O CMOS 1V8 GPIO Pin 0 Preferred Output Runtime Shared with CAM0_PWR#
P109 GPIO1 / CAM1_PWR# GPIO.1 AC1 GPIO3_D3_d
CIF_D5
EBC_SDDO5
SDMMC2_CLK_M0
I2S1_SDI1_M1
VOP_BT656_D5_M1 		GPIO I/O CMOS 1V8 GPIO Pin 1 Preferred Output Runtime Shared with CAM1_PWR#
P110 GPIO2 / CAM0_RST# GPIO.2 AA1 GPIO3_D4_d
CIF_D6
EBC_SDDO6
SDMMC2_DET_M0
I2S1_SDI2_M1
VOP_BT656_D6_M1 		GPIO I/O CMOS 1V8 GPIO Pin 2 Preferred Output Runtime Shared with CAM0_RST#
P111 GPIO3 / CAM1_RST# GPIO.3 Y7 GPIO3_D2_d
CIF_D4
EBC_SDDO4
SDMMC2_CMD_M0
I2S1_SDI0_M1
VOP_BT656_D4_M1 		GPIO I/O CMOS 1V8 GPIO Pin 3 Preferred Output Runtime Shared with CAM1_RST#
P112 GPIO4 / HDA_RST# NC - GPIO I/O CMOS 1V8 GPIO Pin 4 Preferred Output Runtime Shared with HDA_RST#
P113 GPIO5 / PWM_OUT NC - GPIO I/O CMOS 1V8 GPIO Pin 5 Preferred Output Runtime Shared with PWM_OUT
P114 GPIO6 / TACHIN NC - GPIO I/O CMOS 1V8 GPIO Pin 6 Preferred Output Runtime Shared with TACHIN
P115 GPIO7 NC - GPIO I/O CMOS 1V8 GPIO Pin 7 Preferred Output Runtime
P116 GPIO8 NC - GPIO I/O CMOS 1V8 GPIO Pin 8 Preferred Output Runtime
P117 GPIO9 NC - GPIO I/O CMOS 1V8 GPIO Pin 9 Preferred Output Runtime
P118 GPIO10 NC - GPIO I/O CMOS 1V8 GPIO Pin 10 Preferred Output Runtime
P119 GPIO11 NC - GPIO I/O CMOS 1V8 GPIO Pin 11 Preferred Output Runtime
P120 GND GND PWR GND
P121 I2C_PM_CK I2C_PM.SCL AF24 GPIO0_B1_u
I2C0_SCL 		MANAGEMENT I/O OD CMOS 1V8 PU 2K2 Power management I2C bus CLK Standby/Sleep
P122 I2C_PM_DAT I2C_PM.SDA AB21 GPIO0_B2_u
I2C0_SDA 		MANAGEMENT I/O OD CMOS 1V8 PU 2K2 Power management I2C bus DATA Standby/Sleep
P123 BOOT_SEL0# BOOT.0 A24 GPIO1_B4_u
EMMC_D0
FLASH_D0 		BOOT I OD CMOS 1V8 PU 10K Input straps determine the Module boot device. Standby
P124 BOOT_SEL1# NC - BOOT I OD CMOS 1V8 Input straps determine the Module boot device. Standby
P125 BOOT_SEL2# NC - BOOT I OD CMOS 1V8 Input straps determine the Module boot device. Standby
P126 RESET_OUT# RESET_OUT# AC24 GPIO0_D6_d MANAGEMENT O CMOS 1V8 General purpose reset output to Carrier Board. Standby
P127 RESET_IN# RESET_IN# AH27 nPOR_u MANAGEMENT I OD CMOS 1V8…5V PU 10K Reset input from Carrier Board. Carrier drives low to force a Module reset, floats the line otherwise. This signal Shall be level triggered during bootup to allow to stop booting of the module.
After bootup it May act as an edge triggered signal. 		Standby
P128 POWER_BTN# POWER_BTN# - MANAGEMENT I OD CMOS 1V8…5V PU 10K Power-button input from Carrier Board. Carrier to float the line in in-active state. Active low, level sensitive.
Should be debounced on the Module. 		Sleep
P129 SER0_TX SER0.RXTX.TX F26 GPIO2_C5_d
I2S2_SDI_M0
GMAC0_RXER
UART8_TX_M0
SPI2_CS1_M0 		SER0 O CMOS 1V8 Asynchronous Serial Data Output Port 0 Runtime
P130 SER0_RX SER0.RXTX.RX E26 GPIO2_C6_d
CLK32K_OUT1
UART8_RX_M0
SPI1_CS1_M0 		SER0 I CMOS 1V8 PU 100K Asynchronous Serial Data Input Port 0 Runtime
P131 SER0_RTS# SER0.RTS D26 GPIO2_B1_d
SDMMC1_PWREN
I2C4_SDA_M1
UART8_RTSn_M0
CAN2_RX_M1 		SER0 O CMOS 1V8 Request to Send Handshake Line for Port 0 Runtime
P132 SER0_CTS# SER0.CTS E25 GPIO2_B2_u
SDMMC1_DET
I2C4_SCL_M1
UART8_CTSn_M0
CAN2_TX_M1 		SER0 I CMOS 1V8 PU 100K Clear to Send Handshake Line for Port 0 Runtime
P133 GND GND PWR GND
P134 SER1_TX SER1.TX AH24 GPIO0_D1_u
UART2_TX_M0 		SER1 O CMOS 1V8 Asynchronous Serial Data Output Port 1 Runtime
P135 SER1_RX SER1.RX AC20 GPIO0_D0_u
UART2_RX_M0 		SER1 I CMOS 1V8 PU 100K Asynchronous Serial Data Input Port 1 Runtime
P136 SER2_TX SER2.RXTX.TX AF2 GPIO3_B2_d
LCDC_D17
VOP_BT1120_D8
GMAC1_RXD1_M0
UART4_TX_M1
PWM9_M0 		SER2 O CMOS 1V8 Asynchronous Serial Data Output Port 2 Runtime
P137 SER2_RX SER2.RXTX.RX AG1 GPIO3_B1_d
LCDC_D16
VOP_BT1120_D7
GMAC1_RXD0_M0
UART4_RX_M1
PWM8_M0 		SER2 I CMOS 1V8 PU 100K Asynchronous Serial Data Input Port 2 Runtime
P138 SER2_RTS# NC - SER2 O CMOS 1V8 Request to Send Handshake Line for Port 2 Runtime
P139 SER2_CTS# NC - SER2 I CMOS 1V8 Clear to Send Handshake Line for Port 2 Runtime
P140 SER3_TX SER3.TX AA7 GPIO3_C2_d
LCDC_VSYNC
VOP_BT1120_D14
SPI1_MISO_M1
UART5_TX_M1
I2S1_SDO3_M2 		SER3 O CMOS 1V8 Asynchronous Serial Data Output Port 3 Runtime
P141 SER3_RX SER3.RX AC4 GPIO3_C3_d
LCDC_DEN
VOP_BT1120_D15
SPI1_CLK_M1
UART5_RX_M1
I2S1_SCLK_RX_M 		SER3 I CMOS 1V8 PU 100K Asynchronous Serial Data Input Port 3 Runtime
P142 GND GND PWR GND
P143 CAN0_TX CAN0.TX AG24 GPIO0_B3_u
I2C1_SCL
CAN0_TX_M0
PCIE30X1_BUTTONRSTn
MCU_JTAG_TDO 		CAN0 O CMOS 1V8 CAN Port 0 Transmit Output Runtime
P144 CAN0_RX CAN0.RX AB20 GPIO0_B4_u
I2C1_SDA
CAN0_RX_M0
PCIE20_BUTTONRSTn
MCU_JTAG_TCK 		CAN0 I CMOS 1V8 CAN Port 0 Receive Input Runtime
P145 CAN1_TX CAN1.TX V5 GPIO4_B5_d
I2C2_SCL_M1
EBC_SDSHR
CAN2_TX_M0
I2S1_SDO3_M1 		CAN1 O CMOS 1V8 CAN Port 1 Transmit Output Runtime
P146 CAN1_RX CAN1.RX V6 GPIO4_B4_d
I2C2_SDA_M1
EBC_GDSP
CAN2_RX_M0
ISP_FLASH_TRIGIN
VOP_BT656_CLK_M1 		CAN1 I CMOS 1V8 CAN Port1 Receive Input Runtime
P147 VDD_IN VDD_IN PWR 3V…5.25V
P148 VDD_IN VDD_IN PWR 3V…5.25V
P149 VDD_IN VDD_IN PWR 3V…5.25V
P150 VDD_IN VDD_IN PWR 3V…5.25V
P151 VDD_IN VDD_IN PWR 3V…5.25V
P152 VDD_IN VDD_IN PWR 3V…5.25V
P153 VDD_IN VDD_IN PWR 3V…5.25V
P154 VDD_IN VDD_IN PWR 3V…5.25V
P155 VDD_IN VDD_IN PWR 3V…5.25V
P156 VDD_IN VDD_IN PWR 3V…5.25V
S1 CSI1_TX+ / I2C_CAM1_CK NC - CSI1 I/O OD CMOS 1V8 I2C clock for serial camera data support link or differential data lane Runtime CSI2.0
S2 CSI1_TX- / I2C_CAM1_DAT NC - CSI1 I/O OD CMOS 1V8 I2C data for serial camera data support link or differential data lane Runtime CSI2.0
S3 GND GND PWR GND
S4 RSVD rsvd -
S5 CSI0_TX+ / I2C_CAM0_CK I2C_CAM0.SCL V1 GPIO4_B3_d
I2C4_SCL_M0
EBC_GDOE
ETH1_REFCLKO_25M_M1
SPI3_CLK_M0
I2S2_SDO_M1 		CSI0 I/O OD CMOS 1V8 PU 2K2 I2C clock for serial camera data support link or differential data lane Runtime CSI2.0
S6 CAM_MCK CAM_MCK U3 GPIO4_C0_d
CIF_CLKOUT
EBC_GDCLK
PWM11_IR_M1 		CSI O CMOS 1V8 Master clock output Runtime
S7 CSI0_TX- / I2C_CAM0_DAT I2C_CAM0.SDA V4 GPIO4_B2_d
I2C4_SDA_M0
EBC_VCOM
GMAC1_RXER_M1
SPI3_MOSI_M0
I2S2_SDI_M1 		CSI0 I/O OD CMOS 1V8 PU 2K2 I2C data for serial camera data support link or differential data lane Runtime CSI2.0
S8 CSI0_CK+ MIPI_CSI.CLK1._P AG9 MIPI_CSI_RX_CLK1P CSI0 I D-PHY CSI0 differential clock input (point to point) Runtime
S9 CSI0_CK- MIPI_CSI.CLK1._N AH9 MIPI_CSI_RX_CLK1N CSI0 I D-PHY CSI0 differential clock input (point to point) Runtime
S10 GND GND PWR GND
S11 CSI0_RX0+ MIPI_CSI.2._P AE11 MIPI_CSI_RX_D2P CSI0 I D-PHY
/ I M-PHY 		CSI0 differential input Runtime
S12 CSI0_RX0- MIPI_CSI.2._N AD11 MIPI_CSI_RX_D2N CSI0 I D-PHY
/ I M-PHY 		CSI0 differential input Runtime
S13 GND GND PWR GND
S14 CSI0_RX1+ MIPI_CSI.3._P AD9 MIPI_CSI_RX_D3P CSI0 I D-PHY
/ I M-PHY 		CSI0 differential input Runtime
S15 CSI0_RX1- MIPI_CSI.3._N AE9 MIPI_CSI_RX_D3N CSI0 I D-PHY
/ I M-PHY 		CSI0 differential input Runtime
S16 GND GND PWR GND
S17 GBE1_MDI0+ ETH1.MDI0._P - GBE1 I/O GBE MDI Differential Pair Signals for External Transformer Standby
S18 GBE1_MDI0- ETH1.MDI0._N - GBE1 I/O GBE MDI Differential Pair Signals for External Transformer Standby
S19 GBE1_LINK100# ETH1.LED_100# - GBE1 O OD CMOS 3V3 Link Speed Indication LED for GBE1 100Mbps Standby Shall be able to sink 24mA or more Carrier LED current.
S20 GBE1_MDI1+ ETH1.MDI1._P - GBE1 I/O GBE MDI Differential Pair Signals for External Transformer Standby
S21 GBE1_MDI1- ETH1.MDI1._N - GBE1 I/O GBE MDI Differential Pair Signals for External Transformer Standby
S22 GBE1_LINK1000# ETH1.LED_1000# - GBE1 O OD CMOS 3V3 Link Speed Indication LED for GBE1 1000Mbps Standby Shall be able to sink 24mA or more Carrier LED current.
S23 GBE1_MDI2+ ETH1.MDI2._P - GBE1 I/O GBE MDI Differential Pair Signals for External Transformer Standby
S24 GBE1_MDI2- ETH1.MDI2._N - GBE1 I/O GBE MDI Differential Pair Signals for External Transformer Standby
S25 GND GND PWR GND
S26 GBE1_MDI3+ ETH1.MDI3._P - GBE1 I/O GBE MDI Differential Pair Signals for External Transformer Standby
S27 GBE1_MDI3- ETH1.MDI3._N - GBE1 I/O GBE MDI Differential Pair Signals for External Transformer Standby
S28 GBE1_CTREF NC - GBE1 Analog 0…3V3 Center-Tap Reference Voltage for Carrier Board Ethernet Magnetic (if required by the Module GBE PHY) Standby
S29 PCIE_D_TX+ / SERDES_0_TX+ NC - PCIED O PCIE Differential PCIe link D transmit data pair Runtime Series AC coupled on Module 75-265 nF depending on PCIe generation
S30 PCIE_D_TX- / SERDES_0_TX- NC - PCIED O PCIE Differential PCIe link D transmit data pair Runtime Series AC coupled on Module 75-265 nF depending on PCIe generation
S31 GBE1_LINK_ACT# ETH1.LED_ACT# - GBE1 O OD CMOS 3V3 Link / Activity Indication LED Driven Low on Link (10, 100 or 1000 Mbps) Blinks on Activity Standby Shall be able to sink 24mA or more Carrier LED current.
S32 PCIE_D_RX+ / SERDES_0_RX+ NC - PCIED I PCIE Differential PCIe link D receive data pair Runtime
S33 PCIE_D_RX- / SERDES_0_RX- NC - PCIED I PCIE Differential PCIe link D receive data pair Runtime
S34 GND GND PWR GND
S35 USB4+ NC - USB4 I/O USB USB USB Differential Data Pairs for Port 4 Standby
S36 USB4- NC - USB4 I/O USB USB USB Differential Data Pairs for Port 4 Standby
S37 USB3_VBUS_DET USB3_VBUS_DET M24 USB3_OTG0_VBUSDET USB3 I USB VBUS 5V USB VBUS 5V USB Port 3 Host Power Detection Standby
S38 AUDIO_MCK AUDIO_MCK A19 GPIO1_A2_d
I2S1_MCLK_M0
UART3_RTSn_M0
SCR_CLK
PCIE30X1_PERSTn_M2 		I2S O CMOS 1V8 Master Clock Output to I2S Codec(s) Runtime
S39 I2S0_LRCK I2S0.FS A20 GPIO1_A5_d
I2S1_LRCK_TX_M0
UART4_RTSn_M0
SCR_RST
PCIE30X1_CLKREQn_M2
ACODEC_DAC_SYNK 		I2S0 I/O CMOS 1V8 I2S0 Left & Right Synchronization Clock Runtime Module Output if CPU acts in Master Mode. Module Input if CPU acts in Slave Mode
S40 I2S0_SDOUT I2S0.DOUT B20 GPIO1_A7_d
I2S1_SDO0_M0
UART4_CTSn_M0
SCR_DET
AUDIOPWM_ROUT_N
ACODEC_DAC_DATAL 		I2S0 O CMOS 1V8 I2S0 Digital Audio Output Runtime
S41 I2S0_SDIN I2S0.DIN B21 GPIO1_B3_d
I2S1_SDI0_M0
PDM_SDI0_M0 		I2S0 I CMOS 1V8 I2S0 Digital Audio Input Runtime
S42 I2S0_CK I2S0.SCLK B19 GPIO1_A3_d
I2S1_SCLK_TX_M0
UART3_CTSn_M0
SCR_IO
PCIE30X1_WAKEn_M2
ACODEC_DAC_CLK 		I2S0 I/O CMOS 1V8 I2S0 Digital Audio Clock Runtime Module Output if CPU acts in Master Mode Module Input if CPU acts in Slave Mode
S43 ESPI_ALERT0# NC - eSPI I OD CMOS 1V8 ESPI ALERT Standby
S44 ESPI_ALERT1# NC - eSPI I OD CMOS 1V8 ESPI ALERT Standby
S45 MDIO_CLK NC - SERDES O CMOS 1V8 MDIO Signals to Configure Possible PHYs
S46 MDIO_DAT NC - SERDES I/O OD CMOS 1V8 MDIO Signals to Configure Possible PHYs
S47 GND GND PWR GND
S48 I2C_GP_CK I2C_GP.SCL E18 GPIO1_A1_u
I2C3_SCL_M0
UART3_TX_M0
CAN1_TX_M0
AUDIOPWM_LOUT_N
ACODEC_ADC_CLK 		I2C_GP I/O OD CMOS 1V8 PU 2K2 General Purpose I2C Clock Signal Runtime
S49 I2C_GP_DAT I2C_GP.SDA D18 GPIO1_A0_u
I2C3_SDA_M0
UART3_RX_M0
CAN1_RX_M0
AUDIOPWM_LOUT_P
ACODEC_ADC_DATA 		I2C_GP I/O OD CMOS 1V8 PU 2K2 General Purpose I2C Data Signal Runtime
S50 HDA_SYNC / I2S2_LRCK NC - I2S2 I/O CMOS 1V8 I2S2 Left & Right Synchronization Clock Runtime Module Output if CPU acts in Master Mode. Module Input if CPU acts in Slave Mode
S51 HDA_SDO / I2S2_SDOUT NC - I2S0 O CMOS 1V8 I2S2 Digital Audio Output Runtime
S52 HDA_SDI / I2S2_SDIN NC - I2S0 I CMOS 1V8 I2S2 Digital Audio Input Runtime
S53 HDA_CK / I2S2_CK NC - I2S0 I/O CMOS 1V8 I2S2 Digital Audio Clock Runtime Module Output if CPU acts in Master Mode Module Input if CPU acts in Slave Mode
S54 SATA_ACT# NC - SATA O OD CMOS 3V3 SATA Activity Indicator Runtime Shall be able to sink 24mA or more Carrier LED current
S55 USB5_EN_OC# NC - USB5 I/O OD CMOS 3V3 USB Over-Current Sense for Port 5 Standby Pulled low by Module OD driver to disable USB5 power. Pulled low by Carrier OD driver to indicate overcurrent situation.
S56 ESPI_IO_2 / QSPI_IO_2 NC - QSPI I/O CMOS 1V8 QSPI Data input / output Standby
S57 ESPI_IO_3 / QSPI_IO_3 NC - QSPI I/O CMOS 1V8 QSPI Data input / output Standby
S58 ESPI_RESET# NC - eSPI O CMOS 1V8 ESPI Reset Standby
S59 USB5+ NC - USB5 I/O USB USB USB Differential Data Pairs for Port 5 Standby
S60 USB5- NC - USB5 I/O USB USB USB Differential Data Pairs for Port 5 Standby
S61 GND GND PWR GND
S62 USB3_SSTX+ USB3_OTG0_SS.D_TX._P T28 USB3_OTG0_SSTXP
SATA0_TXP 		USB3 O USB SS USB SS Transmit Signal Differential Pairs for
SuperSpeed on Port 3 		Standby DC blocking capacitors 100nF shall be placed on the Module
S63 USB3_SSTX- USB3_OTG0_SS.D_TX._N T27 USB3_OTG0_SSTXN
SATA0_TXN 		USB3 O USB SS USB SS Transmit Signal Differential Pairs for
SuperSpeed on Port 3 		Standby DC blocking capacitors 100nF shall be placed on the Module
S64 GND GND PWR GND
S65 USB3_SSRX+ USB3_OTG0_SS.D_RX._P R28 USB3_OTG0_SSRXP
SATA0_RXP 		USB3 I USB SS USB SS Receive Signal Differential Pairs for
SuperSpeed on Port 3 		Standby
S66 USB3_SSRX- USB3_OTG0_SS.D_RX._N R27 USB3_OTG0_SSRXN
SATA0_RXN 		USB3 I USB SS USB SS Receive Signal Differential Pairs for
SuperSpeed on Port 3 		Standby
S67 GND GND PWR GND
S68 USB3+ USB3_OTG0._P P27 USB3_OTG0_DP USB3 I/O USB USB USB Differential Data Pairs for Port 3 Standby
S69 USB3- USB3_OTG0._N P28 USB3_OTG0_DN USB3 I/O USB USB USB Differential Data Pairs for Port 3 Standby
S70 GND GND PWR GND
S71 USB2_SSTX+ USB3_HOST1_SS.D_TX._P V28 USB3_HOST1_SSTXP
SATA1_TXP
QSGMII_TXP_M0 		USB2 O USB SS USB SS Transmit Signal Differential Pairs for SuperSpeed on Port 2 Standby DC blocking capacitors 100nF shall be placed on the Module
S72 USB2_SSTX- USB3_HOST1_SS.D_TX._N V27 USB3_HOST1_SSTXN
SATA1_TXN
QSGMII_TXN_M0 		USB2 O USB SS USB SS Transmit Signal Differential Pairs for SuperSpeed on Port 2 Standby DC blocking capacitors 100nF shall be placed on the Module
S73 GND GND PWR GND
S74 USB2_SSRX+ USB3_HOST1_SS.D_RX._P U28 USB3_HOST1_SSRXP
SATA1_RXP
QSGMII_RXP_M0 		USB2 I USB SS USB SS Receive Signal Differential Pairs for
SuperSpeed on Port 2 		Standby
S75 USB2_SSRX- USB3_HOST1_SS.D_RX._N U27 USB3_HOST1_SSRXN SATA1_RXN
QSGMII_RXN_M0 		USB2 I USB SS USB SS Receive Signal Differential Pairs for
SuperSpeed on Port 2 		Standby
S76 PCIE_B_RST# PCIE_B_RST# AD6 GPIO2_D6_d
LCDC_D6
VOP_BT656_D6_M0
SPI2_MOSI_M1
PCIE30X2_PERSTn_M1
I2S1_SDI3_M2 		PCIEB O CMOS 3V3 PCIe Port B reset output Runtime
S77 PCIE_C_RST# PCIE_C_RST# AD1 GPIO3_C1_d
LCDC_HSYNC
VOP_BT1120_D13
SPI1_MOSI_M1
PCIE20_PERSTn_M1
I2S1_SDO2_M2 		PCIEC O CMOS 3V3 PCIe Port C reset output Runtime
S78 PCIE_C_RX+ / SERDES_1_RX+ PCIE20.D_RX._P Y27 PCIE20_RXP
SATA2_RXP
QSGMII_RXP_M1 		PCIEC I PCIE Differential PCIe link C receive data pair Runtime
S79 PCIE_C_RX- / SERDES_1_RX- PCIE20.D_RX._N Y28 PCIE20_RXN
SATA2_RXN
QSGMII_RXN_M1 		PCIEC I PCIE Differential PCIe link C receive data pair Runtime
S80 GND GND PWR GND
S81 PCIE_C_TX+ / SERDES_1_TX+ PCIE20.D_TX._P W27 PCIE20_TXP
SATA2_TXP
QSGMII_TXP_M1 		PCIEC O PCIE Differential PCIe link C transmit data pair Runtime Series AC coupled on Module 75-265 nF depending on PCIe generation
S82 PCIE_C_TX- / SERDES_1_TX- PCIE20.D_TX._N W28 PCIE20_TXN
SATA2_TXN
QSGMII_TXN_M1 		PCIEC O PCIE Differential PCIe link C transmit data pair Runtime Series AC coupled on Module 75-265 nF depending on PCIe generation
S83 GND GND PWR GND
S84 PCIE_B_REFCK+ PCIE30_REFCLKB._P - PCIEB O PCIE Differential PCIe Link B reference clock output Runtime
S85 PCIE_B_REFCK- PCIE30_REFCLKB._N - PCIEB O PCIE Differential PCIe Link B reference clock output Runtime
S86 GND GND PWR GND
S87 PCIE_B_RX+ PCIE30_L1.D_RX._P AD28 PCIE30_RX1P PCIEB I PCIE Differential PCIe link B receive data pair Runtime
S88 PCIE_B_RX- PCIE30_L1.D_RX._N AD27 PCIE30_RX1N PCIEB I PCIE Differential PCIe link B receive data pair Runtime
S89 GND GND PWR GND
S90 PCIE_B_TX+ PCIE30_L1.D_TX._P AB28 PCIE30_TX1P PCIEB O PCIE Differential PCIe link B transmit data pair Runtime Series AC coupled on Module 75-265 nF depending on PCIe generation
S91 PCIE_B_TX- PCIE30_L1.D_TX._N AB27 PCIE30_TX1N PCIEB O PCIE Differential PCIe link B transmit data pair Runtime Series AC coupled on Module 75-265 nF depending on PCIe generation
S92 GND GND PWR GND
S93 DP0_LANE0+ EDP_TX.D0._P J28 EDP_TX_D0P DP0++ O DP Primary DP Port Differential Pair Data Lines Runtime
S94 DP0_LANE0- EDP_TX.D0._N K27 EDP_TX_D0N DP0++ O DP Primary DP Port Differential Pair Data Lines Runtime
S95 DP0_AUX_SEL NC - DP0++ I CMOS 1V8 Auxiliary Selection Runtime
S96 DP0_LANE1+ EDP_TX.D1._P K28 EDP_TX_D1P DP0++ O DP Primary DP Port Differential Pair Data Lines Runtime
S97 DP0_LANE1- EDP_TX.D1._N L27 EDP_TX_D1N DP0++ O DP Primary DP Port Differential Pair Data Lines Runtime
S98 DP0_HPD DP0_HPD AG23 GPIO0_C2_d
PWM3_IR
EDP_HPDIN_M1
PCIE30X1_WAKEn_M0
MCU_JTAG_TMS 		DP0++ I CMOS 1V8 PD 1M DP Hot Plug Detect Input Runtime
S99 DP0_LANE2+ EDP_TX.D2._P L28 EDP_TX_D2P DP0++ O DP Primary DP Port Differential Pair Data Lines Runtime
S100 DP0_LANE2- EDP_TX.D2._N M27 EDP_TX_D2N DP0++ O DP Primary DP Port Differential Pair Data Lines Runtime
S101 GND GND PWR GND
S102 DP0_LANE3+ EDP_TX.D3._P M28 EDP_TX_D3P DP0++ O DP Primary DP Port Differential Pair Data Lines Runtime
S103 DP0_LANE3- EDP_TX.D3._N N27 EDP_TX_D3N DP0++ O DP Primary DP Port Differential Pair Data Lines Runtime
S104 USB3_OTG_ID USB3_OTG0_ID L23 USB3_OTG0_ID USB3 I CMOS 3V3 Input Pin to Announce OTG Device Insertion on USB 3.2 Port Standby
S105 DP0_AUX+ EDP_TX.AUX._P L25 EDP_TX_AUXP DP0++ I/O DP 3V3 PD 100K Primary DP Port Bidirectional Channel used for Link
Management and Device Control 		Runtime AC coupled on module. if DP0_AUX_SEL=1 (HDMI) - DC coupled
S106 DP0_AUX- EDP_TX.AUX._N M25 EDP_TX_AUXN DP0++ I/O DP 3V3 PU 100K Primary DP Port Bidirectional Channel used for Link
Management and Device Control 		Runtime AC coupled on module. if DP0_AUX_SEL=1 (HDMI) - DC coupled
S107 LCD1_BKLT_EN LCD1_BKLT_EN AF23 GPIO0_C1_d
PWM2_M0
NPUAVS
UART0_TX
MCU_JTAG_TDI
eDP1 O CMOS 1V8 Secondary LVDS Channel Backlight
Enable 		Runtime
S108 LVDS1_CK+ / eDP1_AUX+ / DSI1_CLK+ MIPI_DSI_TX1.4._P AD15 MIPI_DSI_TX1_CLKP DSI1 O D-PHY Secondary DSI Panel Differential Pair Clock Lines Runtime
S109 LVDS1_CK- / eDP1_AUX- / DSI1_CLK- MIPI_DSI_TX1.4._N AE15 MIPI_DSI_TX1_CLKN DSI1 O D-PHY Secondary DSI Panel Differential Pair Clock Lines Runtime
S110 GND GND PWR GND
S111 LVDS1_0+ / eDP1_TX0+ / DSI1_D0+ MIPI_DSI_TX1.0._P AD18 MIPI_DSI_TX1_D0P DSI1 O D-PHY Secondary DSI Panel Differential Pair Data Lines Runtime
S112 LVDS1_0- / eDP1_TX0- / DSI1_D0- MIPI_DSI_TX1.0._N AE18 MIPI_DSI_TX1_D0N DSI1 O D-PHY Secondary DSI Panel Differential Pair Data Lines Runtime
S113 eDP1_HPD / DSI1_TE DSI1_TE AB9 GPIO4_D2_d DSI1 I CMOS 1V8 Detection of Hot Plug / Unplug of Secondary eDP Display and
Notification of the Link Layer 		Runtime
S114 LVDS1_1+ / eDP1_TX1+ / DSI1_D1+ MIPI_DSI_TX1.1._P AD17 MIPI_DSI_TX1_D1P DSI1 O D-PHY Secondary DSI Panel Differential Pair Data Lines Runtime
S115 LVDS1_1- / eDP1_TX1- / DSI1_D1- MIPI_DSI_TX1.1._N AC17 MIPI_DSI_TX1_D1N DSI1 O D-PHY Secondary DSI Panel Differential Pair Data Lines Runtime
S116 LCD1_VDD_EN LCD1_VDD_EN AD22 GPIO0_C0_d
PWM1_M0
GPUAVS
UART0_RX
DSI1 O CMOS 1V8 Secondary Panel Power Enable Runtime
S117 LVDS1_2+ / eDP1_TX2+ / DSI1_D2+ MIPI_DSI_TX1.2._P AD14 MIPI_DSI_TX1_D2P DSI1 O D-PHY Secondary DSI Panel Differential Pair Data Lines Runtime
S118 LVDS1_2- / eDP1_TX2- / DSI1_D2- MIPI_DSI_TX1.2._N AC14 MIPI_DSI_TX1_D2N DSI1 O D-PHY Secondary DSI Panel Differential Pair Data Lines Runtime
S119 GND GND PWR GND
S120 LVDS1_3+ / eDP1_TX3+ / DSI1_D3+ MIPI_DSI_TX1.3._P AD12 MIPI_DSI_TX1_D3P DSI1 O D-PHY Secondary DSI Panel Differential Pair Data Lines Runtime
S121 LVDS1_3- / eDP1_TX3- / DSI1_D3- MIPI_DSI_TX1.3._N AE12 MIPI_DSI_TX1_D3N DSI1 O D-PHY Secondary DSI Panel Differential Pair Data Lines Runtime
S122 LCD1_BKLT_PWM LCD1_BKLT_PWM AH26 GPIO0_B7_d
PWM0_M0
CPUAVS 		DSI1 O CMOS 1V8 Secondary Panel Brightness Control Runtime
S123 GPIO13 NC - GPIO I/O CMOS 1V8 GPIO Pin 13 Preferred Output Runtime
S124 GND GND PWR GND
S125 LVDS0_0+ / eDP0_TX0+ / DSI0_D0+ MIPI_DSI_TX0_LVDS_TX0.0._P AH17 MIPI_DSI_TX0_D0P
LVDS_TX0_D0P 		DSI0 O D-PHY Primary DSI Panel Differential Pair Data Lines Runtime 90 Ohm Llayout
S126 LVDS0_0- / eDP0_TX0- / DSI0_D0- MIPI_DSI_TX0_LVDS_TX0.0._N AG17 MIPI_DSI_TX0_D0N
LVDS_TX0_D0N 		DSI0 O D-PHY Primary DSI Panel Differential Pair Data Lines Runtime 90 Ohm Llayout
S127 LCD0_BKLT_EN LCD0_BKLT_EN AD23 GPIO0_B0_u
CLK32K_IN
CLK32K_OUT0
PCIE30X2_BUTTONRSTn 		DSI0 O CMOS 1V8 Primary Panel Backlight Enable Runtime
S128 LVDS0_1+ / eDP0_TX1+ / DSI0_D1+ MIPI_DSI_TX0_LVDS_TX0.1._P AH16 MIPI_DSI_TX0_D1P
LVDS_TX0_D1P 		DSI0 O D-PHY Primary DSI Panel Differential Pair Data Lines Runtime 90 Ohm Llayout
S129 LVDS0_1- / eDP0_TX1- / DSI0_D1- MIPI_DSI_TX0_LVDS_TX0.1._N AG16 MIPI_DSI_TX0_D1N
LVDS_TX0_D1N 		DSI0 O D-PHY Primary DSI Panel Differential Pair Data Lines Runtime 90 Ohm Llayout
S130 GND GND PWR GND
S131 LVDS0_2+ / eDP0_TX2+ / DSI0_D2+ MIPI_DSI_TX0_LVDS_TX0.2._P AH14 MIPI_DSI_TX0_D2P
LVDS_TX0_D2P 		DSI0 O D-PHY Primary DSI Panel Differential Pair Data Lines Runtime 90 Ohm Llayout
S132 LVDS0_2- / eDP0_TX2- / DSI0_D2- MIPI_DSI_TX0_LVDS_TX0.2._N AG14 MIPI_DSI_TX0_D2N
LVDS_TX0_D2N 		DSI0 O D-PHY Primary DSI Panel Differential Pair Data Lines Runtime 90 Ohm Llayout
S133 LCD0_VDD_EN LCD0_VDD_EN AH25 GPIO0_C7_d
HDMITX_CEC_M1
PWM0_M1
UART0_CTSn 		DSI0 O CMOS 1V8 Primary Panel Power Enable Runtime
S134 LVDS0_CK+ / eDP0_AUX+ / DSI0_CLK+ MIPI_DSI_TX0_LVDS_TX0.4._P AH15 MIPI_DSI_TX0_CLKP
LVDS_TX0_CLKP 		DSI0 O D-PHY Primary DSI Panel Differential Pair Clock Lines Runtime
S135 LVDS0_CK- / eDP0_AUX- / DSI0_CLK- MIPI_DSI_TX0_LVDS_TX0.4._N AG15 MIPI_DSI_TX0_CLKN
LVDS_TX0_CLKN 		DSI0 O D-PHY Primary DSI Panel Differential Pair Clock Lines Runtime
S136 GND GND PWR GND
S137 LVDS0_3+ / eDP0_TX3+ / DSI0_D3+ MIPI_DSI_TX0_LVDS_TX0.3._P AH13 MIPI_DSI_TX0_D3P
LVDS_TX0_D3P 		DSI0 O D-PHY Primary DSI Panel Differential Pair Data Lines Runtime 90 Ohm Llayout
S138 LVDS0_3- / eDP0_TX3- / DSI0_D3- MIPI_DSI_TX0_LVDS_TX0.3._N AG13 MIPI_DSI_TX0_D3N
LVDS_TX0_D3N 		DSI0 O D-PHY Primary DSI Panel Differential Pair Data Lines Runtime 90 Ohm Llayout
S139 I2C_LCD_CK I2C_LCD.SCL V5 GPIO4_B5_d
I2C2_SCL_M1
EBC_SDSHR
CAN2_TX_M0
I2S1_SDO3_M1 		DSI I\O OD CMOS 1V8 PU 2K2 I2C clock to read LCD display EDID EEPROMs Runtime
S140 I2C_LCD_DAT I2C_LCD.SDA V6 GPIO4_B4_d
I2C2_SDA_M1
EBC_GDSP
CAN2_RX_M0
ISP_FLASH_TRIGIN
VOP_BT656_CLK_M1 		DSI I\O OD CMOS 1V8 PU 2K2 DDC Data Line Used for Flat Panel Detection and Control Runtime
S141 LCD0_BKLT_PWM LCD0_BKLT_PWM AE23 GPIO0_C3_d
PWM4
VOP_PWM_M0
PCIE30X1_PERSTn_M0
MCU_JTAG_TRSTn 		DSI0 O CMOS 1V8 Primary Panel Brightness Control Runtime
S142 GPIO12 NC - GPIO I/O CMOS 1V8 GPIO Pin 12 Preferred Output Runtime
S143 GND GND PWR GND
S144 eDP0_HPD / DSI0_TE DSI0_TE AH7 GPIO4_C4_d
EDP_HPDIN_M0
SPDIF_TX_M2
SATA2_ACT_LED
PCIE30X2_PERSTn_M2
I2S3_LRCK_M1 		DSI0 I CMOS 1V8 Primary DSI Panel Tearing Effect Signal Runtime
S145 WDT_TIME_OUT# WDT_TIME_OUT# C23 GPIO1_D3_u
FSPI_CS0n
FLASH_CS0n 		WATCHDOG O CMOS 1V8 Watch-Dog-Timer Output, low active Runtime
S146 PCIE_WAKE# NC - PCIE I OD CMOS 3V3 PCIe wake up interrupt to host – common to PCIe links A, B, C, D Standby
S147 VDD_RTC VDD_RTC - PWR RTC 2V…3.25V
S148 LID# NC - MANAGEMENT I OD CMOS 1V8…5V Lid open/close indication to Module.
Low indicates lid closure (which system may use to initiate a sleep state). Carrier to float the line in inactive state. Active low, level sensitive. Should be de-bounced on the Module. 		Standby
S149 SLEEP# NC - MANAGEMENT I OD CMOS 1V8…5V Sleep indicator from Carrier Board. May be sourced from user Sleep button or Carrier logic. Carrier to float the line in in-active state. Active low, level sensitive. Should be debounced on the Module. Standby
S150 VIN_PWR_BAD# VIN_PWR_BAD# - MANAGEMENT I OD CMOS VDD_IN PU 10K Power bad indication from Carrier Board. Module and Carrier power supplies (other than Module and Carrier power supervisory circuits) shall not be enabled while this signal is held low by the Carrier.
S151 CHARGING# NC - MANAGEMENT I OD CMOS 1V8…5V Held low by Carrier during battery charging. Carrier to float the line when charge is complete. Standby/Sleep
S152 CHARGER_PRSNT# NC - MANAGEMENT I OD CMOS 1V8…5V Held low by Carrier if DC input for battery charger is present Standby/Sleep
S153 CARRIER_STBY# CARRIER_STBY# D23 GPIO1_D2_u
FSPI_D1
FLASH_RDn 		MANAGEMENT O CMOS 1V8 The Module shall drive this signal low when the system is in a standby power state. Standby
S154 CARRIER_PWR_ON CARRIER_PWR_ON A27 GPIO1_D4_u
FSPI_D3
FLASH_CS1n 		MANAGEMENT O CMOS 1V8 Carrier Board circuits (apart from power management and power path
circuits) should not be powered up until the Module asserts the
CARRIER_PWR_ON signal. 		Standby
S155 FORCE_RECOV# FORCE_RECOV# B27 SARADC_VIN0 BOOT I OD CMOS 1V8 PU 10K Low on this pin allows nonprotected segments of Module boot device to be rewritten / restored from an external USB Host on Module USB0. The Module USB0 operates in Client Mode when in the Force Recovery function is invoked. Pulled high on the Module.
For SOCs that do not implement a USB based Force Recovery functions, then a low on the Module FORCE_RECOV# pin may invoke the SOC native Force Recovery mode – such as over a
Serial Port.
For x86 systems this signal may be used to load BIOS defaults.
Pulled up on Module. Driven by OD part on Carrier. 		Standby
S156 BATLOW# NC - MANAGEMENT I OD CMOS 1V8…5V Battery low indication to Module.
Carrier to float the line in inactive state. 		Standby/Sleep
S157 TEST# NC - MANAGEMENT I OD CMOS 1V8…5V Held Low by Carrier to Invoke Module
Vendor Specific Test Functions 		Standby/Sleep
S158 GND GND PWR GND

Ordering information

NMS-SM-RK3568-2-16AI1 2 GBytes LPDDR4 RAM, 16 GBytes eMMC ROM, 2 Gigabit Ethernet (GBE0, GBE1), Industrial
NMS-SM-RK3568-2-16AC1 2 GBytes LPDDR4 RAM, 16 GBytes eMMC ROM, 2 Gigabit Ethernet (GBE0, GBE1), Commercial
NMS-SM-RK3568-2-16BI1 2 GBytes LPDDR4 RAM, 16 GBytes eMMC ROM, 1 Gigabit Ethernet (GBE0), Industrial
NMS-SM-RK3568-2-16BC1 2 GBytes LPDDR4 RAM, 16 GBytes eMMC ROM, 1 Gigabit Ethernet (GBE0), Commercial
boards/nms-sm-rk3568/v1_ru/start.txt · Последнее изменение: 2024/01/29 13:50 — Roman Abakumov

Инструменты страницы

Если не указано иное, содержимое этой вики предоставляется на условиях следующей лицензии: CC Attribution-Share Alike 4.0 International
CC Attribution-Share Alike 4.0 International Donate Powered by PHP Valid HTML5 Valid CSS Driven by DokuWiki
